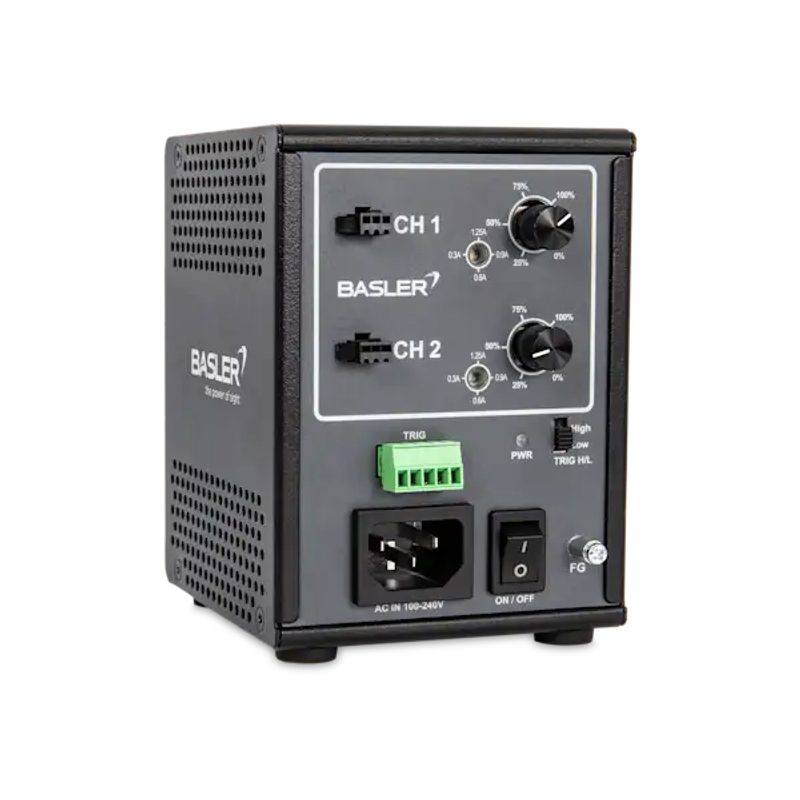

Light Controller 2C-1.25A-50W-24V
The Basler Light Controller 2C-1.25A-50W-24V is a DIN-rail-mountable, two-channel current-controlled driver for industrial LED lighting. It accepts a universal 100–240 VAC mains input and delivers 10 mA–1.25 A per channel (8–24 VDC), with a maximum combined output of 50 W (30 W per channel). Operating modes include continuous dimming via front-panel rotary knobs and strobe/ON-OFF control via external trigger signals (12–24 V, up to 10 kHz, response time <50 µs). Light outputs use 3-pin JST-SMR female connectors; trigger input uses a 5-pin PCB terminal block. Protective features include overcurrent, short-circuit, and over-temperature protection, and the unit is certified CE/RoHS/UKCA/FCC/KC.
- Driver technology
- Current-controlled
- Supply voltage
- 100–240 VAC input / 8–24 VDC output
- Power consumption
- 50 W (total output)
- Operating temperature
- 0–40 °C
- Dimensions
- 100 × 93 × 125 mm
- Weight
- 850 g
| Driver technology | Current-controlled |
|---|---|
| Supply voltage | 100–240 VAC input / 8–24 VDC output |
| Power consumption | 50 W (total output) |
| Operating temperature | 0–40 °C |
|---|
| Dimensions | 100 × 93 × 125 mm |
|---|---|
| Weight | 850 g |
