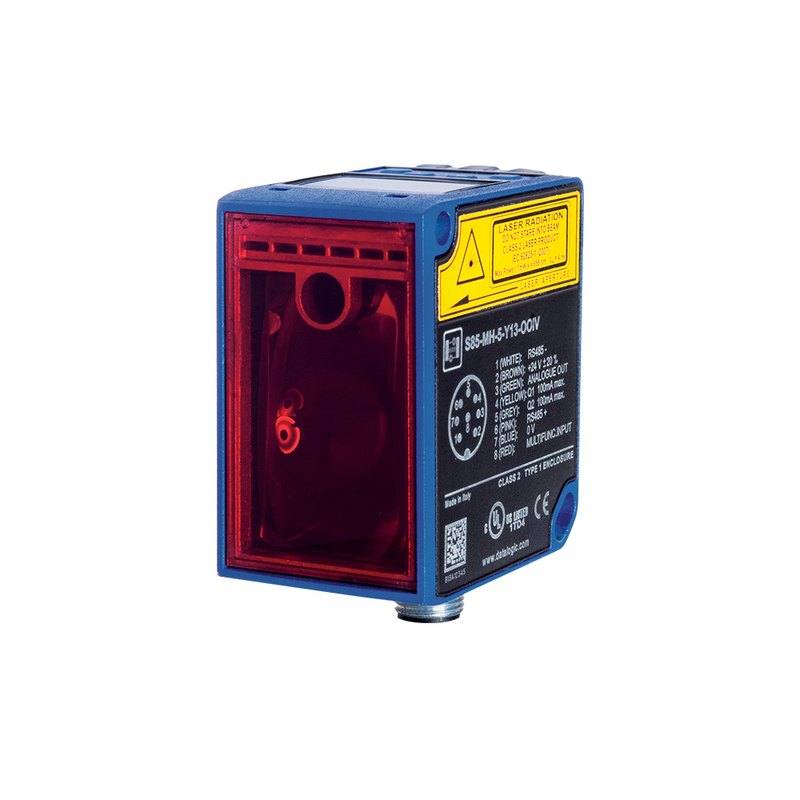

Datasensing S85-MH-5-Y03-OOV
S85-MH-5-Y03-OOV
The S85-MH-5-Y03-OOV is a cubic-form-factor laser distance sensor from Datasensing (formerly Datalogic) based on Time-of-Flight technology, capable of measuring distances from 0.2 m to 10 m without a prismatic reflector. It delivers 1 mm resolution, 7 mm accuracy, and 1 mm repeatability, with three selectable response-time modes (fast 15 ms, medium 30 ms, slow 45 ms). The sensor provides two digital switching outputs (NPN/PNP push-pull) and one analog 0–10 V output, configured via push-buttons, and is housed in a die-cast zinc metal enclosure rated IP67. Supply voltage is 10–30 VDC; the Class
- Brand
- Datalogic / Datasensing
- Sensor type
- distance
- Range / distance
- 10000.0 mm
- Output type
- NPN/PNP/ANALOG
- Light source
- red_laser
- Response time
- 30.0 ms
- Supply voltage
- 24
- Connection
- m12_5pin
- IP rating
- ip67
- Dimensions
- 37x62x60
- Operating temperature
- -15…+50
- Power consumption
- 2.8 W
| Brand | Datalogic / Datasensing |
|---|---|
| Sensor type | distance |
| Range / distance | 10000.0 mm |
|---|---|
| Response time | 30.0 ms |
| Connection | m12_5pin |
|---|
| Supply voltage | 24 |
|---|---|
| Power consumption | 2.8 W |
| IP rating | ip67 |
|---|---|
| Operating temperature | -15…+50 |
| Output type | NPN/PNP/ANALOG |
|---|
| Light source | red_laser |
|---|
| Dimensions | 37x62x60 |
|---|---|
| Housing material | Die-cast zinc (Zamak) / PMMA window |
