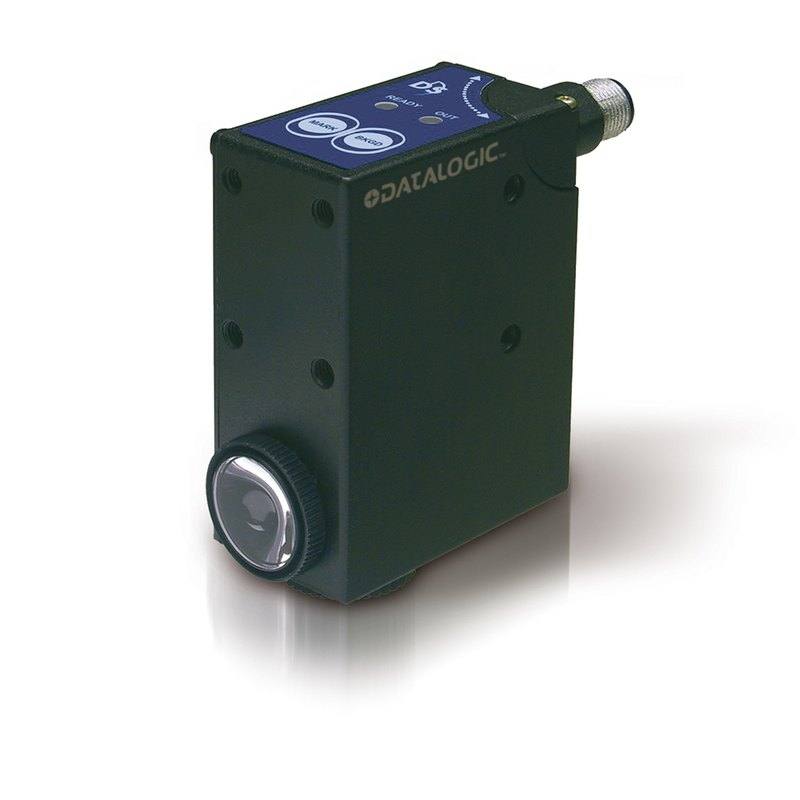

Datasensing TLµ-011 Contrast Sensor
TLµ-011
The TLµ-011 is a compact midi contrast sensor designed for detection of registration marks and other printed references on packaging and printing lines. It uses an RGB LED with automatic red/green wavelength selection to maximise contrast on any background, and features microprocessor-based Teach-in configuration via two push-buttons or remote cable. The NPN output is light-/dark-selectable via an internal switch, and an analog output proportional to received light is also available. The sensor is housed in a rugged Zamak metal body with glass optics, rated IP67, and operates from 10–30 V DC.
- Brand
- Datalogic / Datasensing
- Sensor type
- contrast color
- Sensing method
- diffuse
- Range / distance
- 6.0 mm
- Output type
- NPN
- Response time
- 0.05 ms
- Switching frequency
- 10000
- Supply voltage
- 24 V DC nominal (range: 10...30 V DC)
- Connection
- 3 m cable
- IP rating
- ip67
- Dimensions
- 31×58×82
- Operating temperature
- -10...+55 °C (value field should be 55 as the upper limit, or omit numeric value)
| Brand | Datalogic / Datasensing |
|---|---|
| Sensor type | contrast color |
| Range / distance | 6.0 mm |
|---|---|
| Response time | 0.05 ms |
| Switching frequency | 10000 |
| Connection | 3 m cable |
|---|
| Supply voltage | 24 V DC nominal (range: 10...30 V DC) |
|---|
| IP rating | ip67 |
|---|---|
| Operating temperature | -10...+55 °C (value field should be 55 as the upper limit, or omit numeric value) |
| Sensing method | diffuse |
|---|
| Output type | NPN |
|---|
| Dimensions | 31×58×82 |
|---|---|
| Housing material | Metal – Zamak |
