LDLV/0P-1K
LDLV

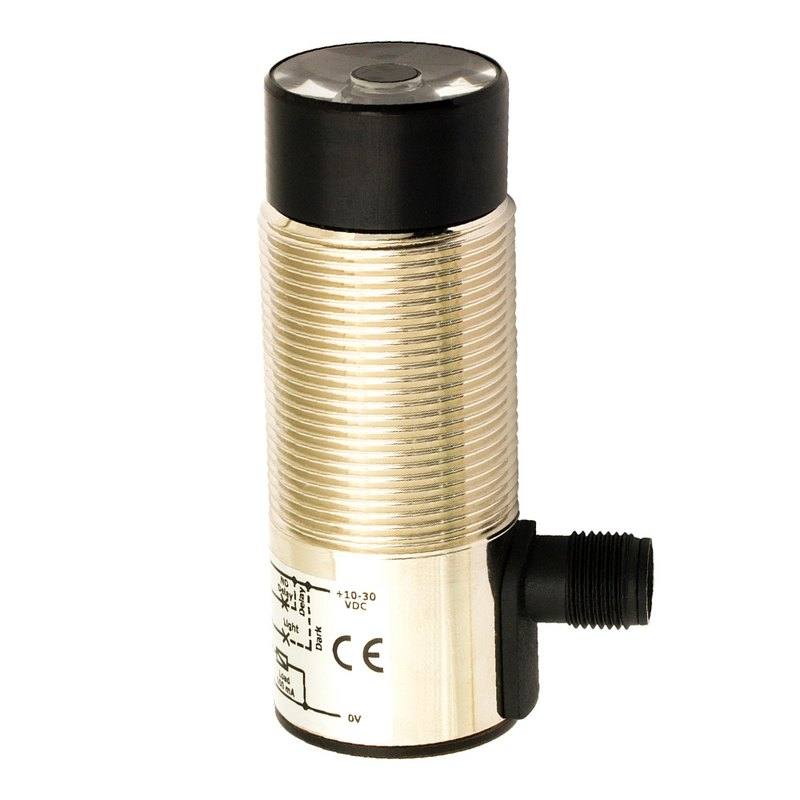

The LDLV/0P-1K is a photoelectric luminescence sensor in an M30 nickel-plated brass housing that uses UV LED emission to detect fluorescent materials at a 30 mm nominal sensing distance. It provides a PNP output with selectable Light-On/Dark-On function and a response time of 1.1 ms (with a short response time mode of 50 µs), switching at up to 400 Hz. The sensor operates on 10–30 V DC, is rated IP65, and supports local and remote Teach-in for sensitivity adjustment. Features include short-circuit and reverse polarity protection, impulsive overvoltage protection, and a 5-pin M12 connector at 9
- Brand
- Datalogic / Datasensing
- Sensor type
- contrast color
- Sensing method
- diffuse
- Range / distance
- 30.0 mm
- Output type
- PNP
- Response time
- 1.1 ms
- Switching frequency
- 400
- Supply voltage
- 10…30 VDC
- Connection
- M12 plug 90°
- IP rating
- ip65
- Dimensions
- M30
- Weight
- 400.0 g
| Brand | Datalogic / Datasensing |
|---|---|
| Sensor type | contrast color |
| Range / distance | 30.0 mm |
|---|---|
| Response time | 1.1 ms |
| Switching frequency | 400 |
| Connection | M12 plug 90° |
|---|
| Supply voltage | 10…30 VDC |
|---|
| IP rating | ip65 |
|---|---|
| Operating temperature | -5…+55 |
| Sensing method | diffuse |
|---|
| Output type | PNP |
|---|
| Dimensions | M30 |
|---|---|
| Weight | 400.0 g |
| Housing material | Nickel-plated brass |
