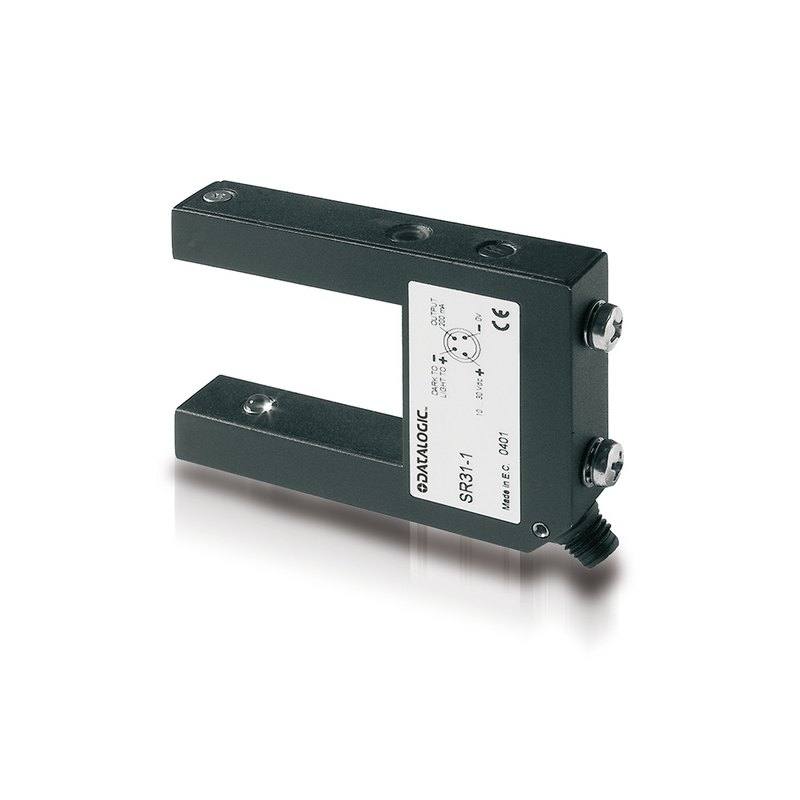

Datasensing SR31

The SR31 is a compact metal-housed photoelectric fork sensor featuring a 30 mm × 42 mm slot and infrared LED emitter/receiver pair integrated in the fork arms. It operates on 10–30 VDC and delivers a 10 kHz switching frequency with 50 µs response time, making it suited for high-speed presence/absence and edge detection. Output polarity (NPN/PNP) and operating mode (light-on/dark-on) are selectable via a trimmer. The series also includes a Wide Gap variant (SR31-0) with a 120 mm slot gap. Housing is die-cast zinc (Zamak) rated IP60.

Brand: Datalogic / Datasensing
Sensor type: fork label
Sensing method: through beam
Range / distance: 30.0 mm
Output type: PUSH_PULL
Light source: ir_led
Response time: 50.0 ms
Switching frequency: 10000
Supply voltage: 10–30 VDC
Connection: cable_m8
Dimensions: 13×50×70 mm
Operating temperature: -10 to +60

Request sensor selection Request a technical quote

Specifications: General
Brand	Datalogic / Datasensing
Sensor type	fork label

Specifications: Performance
Range / distance	30.0 mm
Response time	50.0 ms
Switching frequency	10000

Specifications: Interface
Connection	cable_m8

Specifications: Electrical
Supply voltage	10–30 VDC

Specifications: Environment
Operating temperature	-10 to +60

Specifications: Sensing
Sensing method	through beam
Light source	ir_led

Specifications: Output
Output type	PUSH_PULL

Specifications: Mechanical
Dimensions	13×50×70 mm
Housing material	Zamak (die-cast zinc)

Datalogic / DatasensingDatasensing LD46-UL-715 Luminescence SensorLD46-UL-715
- Recommended by AIS Vision
On request
View
Datalogic / DatasensingDatasensing LD46-UL-735 Luminescence SensorLD46-UL-735
- Recommended by AIS Vision
On request
View
Datalogic / DatasensingDatasensing LD46-UL-755 Luminescence SensorLD46-UL-755
- Recommended by AIS Vision
On request
View

datasheetDatalogic / Datasensing SR31 — manufacturer page →
datasheetDatalogic / Datasensing SR31 — manufacturer page →
softwareIMPACT Software Suite →
downloadsDatalogic / Datasensing software & SDK downloads →

Follow these steps to bring a Datalogic / Datasensing camera online, grab a first image, and move toward an integrated inspection.

Software: IMPACT Software Suite

1. Install the IMPACT Software Suite and connect the camera
Install the IMPACT Software Suite on your PC, which provides both the configuration/viewer tools and the SDK. For a GigE Vision model (E100, M or U series), connect it to a dedicated NIC and, for USB3 models, use a certified USB3 cable and port. Power the camera and confirm it enumerates.
2. Bring the camera online and verify the link
For GigE Vision, put the camera and the host NIC on the same subnet (a static IP on the camera matching the NIC range is the most reliable starting point); for USB3, confirm the device is recognized. Open the IMPACT viewer/device tool, discover the camera, and verify a stable connection before streaming. Enabling jumbo frames on the NIC helps GigE throughput.
3. Set exposure, gain and trigger, then grab a first image
In the IMPACT tools, start a live stream and adjust exposure and gain until the image is well-lit without saturation; set white balance on color models. Begin in free-run (continuous) mode to confirm imaging, then switch to hardware or software trigger as your application requires. Capture and save a reference image once the scene looks correct.
4. Build a vision tool or move to the SDK/API
Use the IMPACT point-and-click vision tools to assemble an inspection, or use the IMPACT SDK to access the camera and results programmatically and feed them into your HMI/PLC application. As these are GenICam/GenTL-compliant devices, you can alternatively drive them from any GenICam-compliant third-party vision library if your pipeline standardizes on one.
5. Route the stable feed to deep-learning inspection (optional)
Once you have a stable, repeatable image, the feed can be sent to a deep-learning inspection platform such as Rosepetal for defect detection or classification tasks that go beyond rule-based tooling. Keep lighting, optics and trigger timing fixed so the images reaching the model stay consistent.
