Is Basler ace 2 a2A3536-31umPRO compatible with Rosepetal?

Yes. It is marked as Rosepetal-ready: it is suitable for AI-based visual inspection. We can validate your case with sample images.

Which lens and lighting do I need?

It depends on the field of view, the working distance and the surface. We help you select the right lens + lighting combination.

Basler Area scan cameras

Rosepetal compatible
Recommended by AIS Vision

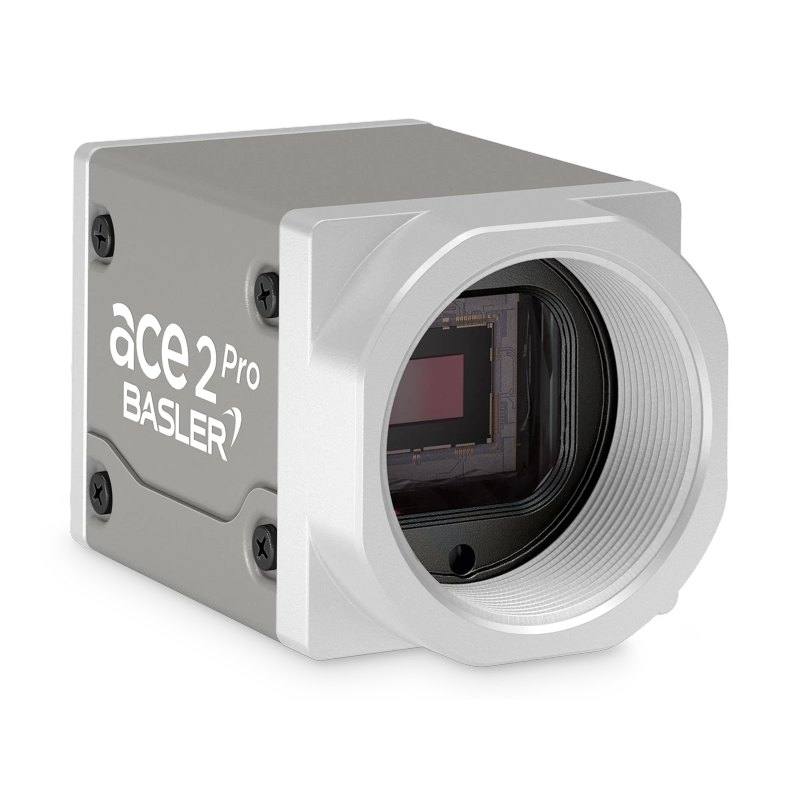

Basler ace 2 a2A3536-31umPRO

a2A3536-31umPRO

The Basler a2A3536-31umPRO is part of the ace 2 R Pro series and uses the Sony IMX676 STARVIS 2 CMOS sensor with a 1/1.6" format, delivering 3536 x 3536 pixel resolution at 31 fps via USB 3.0 (SuperSpeed, 5 Gbit/s). It features rolling shutter, 2 µm square pixels, 10/12-bit pixel depth, and supports both visible and NIR wavelengths. The camera provides hardware trigger, 1 opto-coupled digital input, and 2 GPIO lines via an M8 6-pin connector, powered over USB or 12–24 VDC at a typical 3 W. IP30-rated box housing measuring 42.8 × 29 × 29 mm with a C-mount lens interface.

Brand: Basler
Camera type: area scan
Interface: USB3
Resolution: 12.5 MP
Mono / color: mono
Sensor manufacturer: sony_pregius
Sensor model: IMX676
Shutter: rolling
FPS: 31 fps
Mount: c-mount
Pixel size: 2 µm
IP rating: ip30

Validate my application with Rosepetal Request a technical quote Talk to AIS Vision

Specifications: General
Brand	Basler
Camera type	area scan

Specifications: Sensor
Resolution	12.5 MP
Mono / color	mono
Sensor manufacturer	sony_pregius
Sensor model	IMX676
Shutter	rolling
Pixel size	2 µm

Specifications: Performance
FPS	31 fps

Specifications: Interface
Interface	USB3

Specifications: Optics
Mount	c-mount

Specifications: Environment
IP rating	ip30

We could not derive compatible lenses from the available data for this camera.

Matched automatically by: lens mount fits the camera mount · lens image circle covers the camera sensor — this camera: c-mount.

Need a compatible lens?

Tell us your sensor format, mount and field of view — we help you pick the right optics.

datasheetBasler a2A3536-31umPRO — manufacturer page →
softwarepylon Camera Software Suite →
downloadsBasler software & SDK downloads →

Get a first image quickly with the pylon Viewer, then move into the pylon SDK for your application. These cameras are GenICam/GenTL-compliant, so any compliant vision software can drive them as well.

Software: pylon Camera Software Suite

1. Install the pylon Camera Software Suite
Download and install the pylon Camera Software Suite for your OS from Basler. This provides the pylon Viewer, the GenTL transport-layer producers and the pylon SDK (C/C++/.NET/Python). On Windows the installer adds the needed drivers; on Linux follow the included setup notes for USB and network permissions.
2. Connect the camera and check the link
Cable the camera to its matching interface: GigE Vision to a GigE port (use a quality cable and, ideally, a dedicated NIC with jumbo frames enabled), USB3 Vision to a USB 3.x port with the supplied cable, or CoaXPress to the frame grabber. Provide power where required (PoE, USB bus power, or PoCXP). Open the pylon Viewer and confirm the camera appears in the device list; for GigE, make sure the camera and NIC are on the same subnet.
3. Grab a first image and set exposure, gain and pixel format
Select the camera in the pylon Viewer and start a continuous grab. Adjust exposure time and gain until the image is well exposed (avoid clipped highlights), set the pixel format (e.g. Mono8 or a Bayer/RGB format), and focus the lens. Use a test pattern if the lens or scene is not ready yet.
4. Configure triggering and acquisition
Decide between free-run and triggered acquisition. For synchronized capture, set the trigger source (software or a hardware line on the I/O connector), trigger mode and any debounce or exposure mode, then verify timing. Note the parameter names you change in the Viewer feature tree, as you will reuse them in code.
5. Move to the SDK or a GenICam-compliant library
Recreate your settings in code with the pylon SDK (C, C++, .NET or Python) to open the device, apply the same features and pull frames into your pipeline; pylon vTools and pylon AI can add processing blocks. Because the cameras are GenICam/GenTL standard, third-party vision libraries work too. Once the image stream is stable, you can route frames to a deep-learning inspection such as Rosepetal for automated defect detection.
