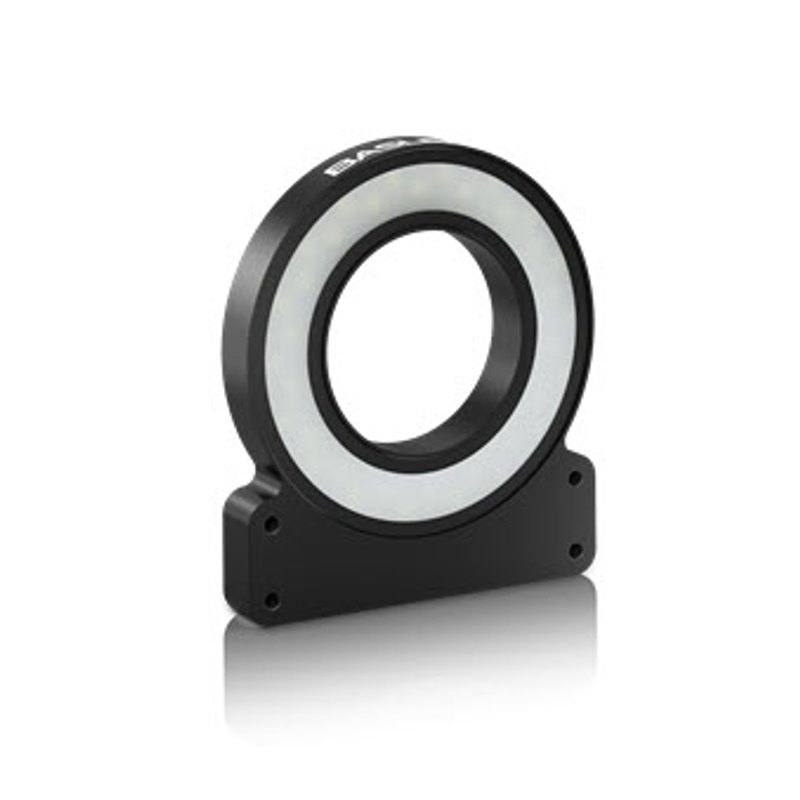

The Basler Light Ring-100OD-White (order number 2200001501; IP67 variant 2200002470) is a white-LED ring light with 5000 K color temperature, a 67-101 mm annular luminous area, and 1255 lm luminous power. It runs from 24 VDC +/-10% drawing 9 W in voltage control mode (450 mA in current control mode) and includes an internal LED controller offering continuous and strobe operation, optionally driven by a Basler SLP Strobe Controller. The black anodized aluminum housing with PMMA light cover measures 110 x 121 x 14 mm, weighs 205 g, and connects via a 4-pin M8 male connector. The recommended light working distance is 100-250 mm; standard models are IP54 while dedicated order numbers provide IP67.
Brand
Basler
Lighting type
Ring light
Color / wavelength
White (5000 K)
Mode
Continuous and strobe (internal LED controller, 2 operating modes)
Working distance
100–250 mm (recommended)
Controller required
No external controller required (internal LED controller; optional Basler SLP Strobe Controller)
The Basler Light Ring-100OD-White is a bright-field ring illuminator: a flat annular array of white LEDs (5000 K) that mounts coaxially around the camera lens so light leaves from the same axis as the camera looks. The 67-101 mm annular luminous area surrounds the optical axis and floods the target with broadly directional, near-on-axis light. Because the illumination is white rather than a single narrow wavelength, it renders true color and is the natural default when an application has to preserve printed color, distinguish parts by hue, or simply present a familiar, evenly lit scene. Geometrically, a ring at this scale is best at lifting surface print, labels, and assembly features into clear contrast, and at producing even fill on flat or gently contoured parts; its near-coaxial angle does, however, tend to wash out very fine surface texture and can throw a bright specular hotspot back off glossy or mirror-like surfaces, which is the classic trade-off of ring geometry.
Positioning is built around the recommended 100-250 mm working distance, measured from the face of the ring to the part. Within that band the annular footprint overlaps and blends into an even pool of light across a typical small-to-medium field of view; mounting much closer concentrates a tighter, brighter ring that can show its individual emission lobes, while pulling back toward 250 mm spreads and softens coverage at the cost of intensity. The 1255 lm output gives generous headroom for short exposures, and the optional diffuser over the PMMA light cover is the lever to reach for when a glossy part needs the harsh ring reflection softened into a smoother wash. The light runs from a single 24 VDC (plus or minus 10 percent) supply and draws 9 W in voltage-control mode (450 mA in current-control mode), so it sits comfortably on a standard industrial 24 V rail.
Operationally, the unit carries its own internal LED controller with two modes, continuous and strobe, which means no external controller is mandatory for either steady illumination or flashed acquisition; for tighter synchronization or overdriven flash an optional Basler SLP Strobe Controller can drive it instead. Strobing the light in step with the camera exposure freezes motion on moving lines and lets the LEDs run brighter during the flash window than they safely could continuously. Connection is a 4-pin M8 male connector, and the package is compact and light: a 110 x 121 x 14 mm black anodized aluminum housing with a PMMA light cover at 205 g, thin enough to sit close to the optics in tight stations. Standard units are rated IP54 for protected indoor and lightly contaminated environments, with dedicated IP67 order numbers (variant 2200002470) for washdown or dusty lines. Rated operating range is 10-30 C, extendable to 45 C with adequate heat dissipation, so mounting on or near a metal bracket that sinks heat is worth planning for in warmer enclosures.
Best for
Surface and defect inspection of flat electronic assemblies such as PCBs and connectors, where the near-coaxial white ring lifts print, components, and surface flaws into even contrast at a 100-250 mm standoff.
OCR/OCV reading of printed lot codes, dates, and human-readable text on automotive and packaged goods, using the true-color 5000 K rendering to keep printed marks legible.
Traceability and code-reading stations where a compact, broadly even white light around the lens illuminates labels and 1D/2D codes on cartons and parts.
Packaging line inspection (fill, label presence, print quality) where strobe mode synchronized to the camera freezes product moving past the station.
General-purpose inspection of metal and machined parts that need a familiar, evenly lit white-light view rather than wavelength-specific contrast, with an IP67 variant available for harsher metalworking environments.
Selection notes
Size the ring to the field of view and standoff: the 67-101 mm annular luminous area and 100-250 mm recommended working distance suit small-to-medium fields; for much larger parts or longer standoffs a larger or higher-output light may be needed, and very glossy surfaces may call for the optional diffuser or a different geometry (dome or low-angle dark-field) to avoid specular hotspots.
Confirm the camera and lens fit within the 67-101 mm luminous opening and that the 14 mm-thin, 205 g body mounts at the intended distance; the ring is designed to sit coaxially around the lens, so plan bracketry that keeps the optical axis centered in the annulus.
Power and wiring are straightforward: a single 24 VDC (plus or minus 10 percent) rail at 9 W and a 4-pin M8 male connector. Decide up front between voltage-control and current-control operation, since current control draws 450 mA, and route the M8 cable accordingly.
Choose the trigger path deliberately. The internal LED controller already provides continuous and strobe modes, so no external controller is required for basic use; add the optional Basler SLP Strobe Controller only when you need tighter exposure synchronization or overdriven flash for fast-moving lines.
Match the IP rating to the environment: standard models are IP54 for clean or lightly contaminated indoor stations, while the dedicated IP67 order number (2200002470) covers washdown and dust. Also budget for thermal headroom, as the 10-30 C range only extends to 45 C with proper heat dissipation.
Specifications: General
Brand
Basler
Lighting type
Ring light
Specifications: Interface
Connection
M8 connector
Specifications: Optical
Color / wavelength
White (5000 K)
Working distance
100–250 mm (recommended)
Diffuser
PMMA light cover; optional diffuser available
Color temperature
5000 K
Specifications: Electrical
Mode
Continuous and strobe (internal LED controller, 2 operating modes)
Controller required
No external controller required (internal LED controller; optional Basler SLP Strobe Controller)
Supply voltage
24 VDC +/-10%, 9 W
Specifications: Environment
IP rating
IP54 (standard); IP67 on dedicated order numbers
Operating temperature
10-30 (up to 45 with heat dissipation) deg C
Specifications: Geometry
Illuminated area
67-101 mm
Specifications: Mechanical
Dimensions
110 x 121 x 14 mm
Weight
205 g
Housing material
Black anodized aluminum housing with PMMA light cover
