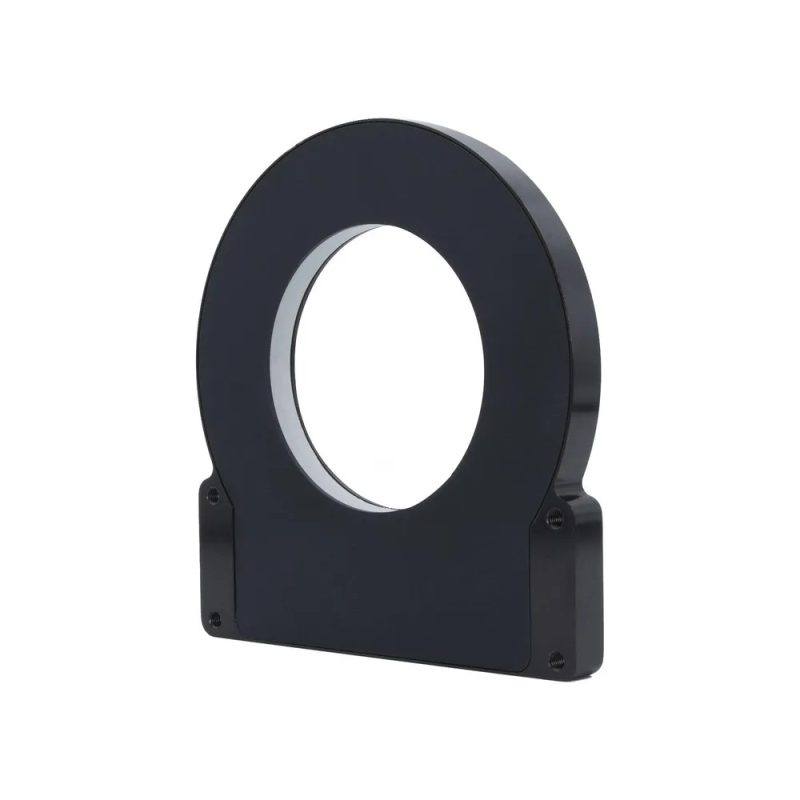

Standard Light Darkfield-100OD-IR
The Basler Standard Light Darkfield-100OD-IR is a darkfield illumination ring light that emits infrared light (850 nm peak) laterally at very shallow angles, making surface defects, edges, and raised features highly visible by contrast. It covers a 100 mm light-emitting surface diameter with an overall housing of 130 × 141 × 12 mm. The light operates at 24 VDC and consumes 6 W (450 mA continuous), supporting both continuous and triggered (strobe) modes via an M8 4-pin connector, and is rated IP54 for light industrial environments.
- Lighting type
- Darkfield (ring, lateral flat-angle emission)
- Color / wavelength
- 850 nm (IR)
- Working distance
- 1–30 mm
- Illuminated area
- Ø 100 mm
- Available wavelengths
- 850 nm (IR)
- Driver technology
- Current controlled (external controller) or voltage controlled (24 V standalone)
- Power consumption
- 6 W
- Supply voltage
- 24 VDC ±5%
- IP rating
- IP54
- Dimensions
- 130 × 141 × 12 mm
- Weight
- 300 g
- Operating temperature
- 10–30 °C
| Lighting type | Darkfield (ring, lateral flat-angle emission) |
|---|
| Color / wavelength | 850 nm (IR) |
|---|---|
| Working distance | 1–30 mm |
| Available wavelengths | 850 nm (IR) |
| Driver technology | Current controlled (external controller) or voltage controlled (24 V standalone) |
|---|---|
| Power consumption | 6 W |
| Supply voltage | 24 VDC ±5% |
| IP rating | IP54 |
|---|---|
| Operating temperature | 10–30 °C |
| Illuminated area | Ø 100 mm |
|---|
| Dimensions | 130 × 141 × 12 mm |
|---|---|
| Weight | 300 g |
| Housing material | Black anodized aluminum with PMMA light guide |
