Is Basler ace 2 a2A4508-6gcBAS compatible with Rosepetal?

Yes. It is marked as Rosepetal-ready: it is suitable for AI-based visual inspection. We can validate your case with sample images.

Which lens and lighting do I need?

It depends on the field of view, the working distance and the surface. We help you select the right lens + lighting combination.

Basler Area scan cameras

Rosepetal compatible
Recommended by AIS Vision

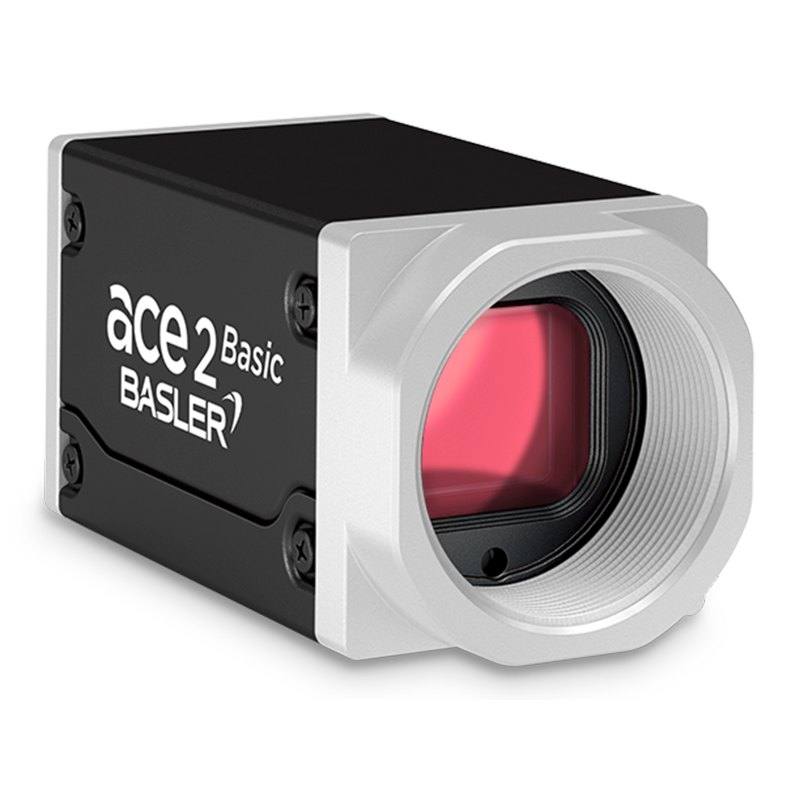

Basler ace 2 a2A4508-6gcBAS

a2A4508-6gc

The Basler ace 2 a2A4508-6gcBAS is a 18.4 MP (4508 × 4096) color GigE Vision 2.0 area scan camera featuring the Gpixel GMAX2518 progressive-scan CMOS sensor with global shutter and 2.5 µm pixel pitch. It outputs up to 6 fps at full resolution over Gigabit Ethernet (RJ45) and supports Power over Ethernet (IEEE 802.3af) as well as 12–24 VDC auxiliary power, consuming approximately 3.8 W. The compact 55.5 × 29 × 29 mm C-mount housing carries an IP30 rating and is fully compliant with GigE Vision 2.0 and GenICam standards. Software support is provided through Basler pylon 6.0+ on Windows, Linux (x

Brand: Basler
Camera type: area scan
Interface: GIGE
Resolution: 18.4 MP
Mono / color: color
Sensor manufacturer: gpixel
Sensor model: GMAX2518
Shutter: global
FPS: 6 fps
Mount: c-mount
Pixel size: 2.5 µm
IP rating: ip30

Validate my application with Rosepetal Request a technical quote Talk to AIS Vision

Specifications: General
Brand	Basler
Camera type	area scan

Specifications: Sensor
Resolution	18.4 MP
Mono / color	color
Sensor manufacturer	gpixel
Sensor model	GMAX2518
Shutter	global
Pixel size	2.5 µm

Specifications: Performance
FPS	6 fps

Specifications: Interface
Interface	GIGE

Specifications: Optics
Mount	c-mount

Specifications: Electrical
Supply voltage	PoE (IEEE 802.3af) or 12–24 VDC

Specifications: Environment
IP rating	ip30
Operating temperature	−10 °C to +60 °C

Specifications: Mechanical
Dimensions	55.5 × 29 × 29 mm
Weight	100 g
Housing material	Box

We could not derive compatible lenses from the available data for this camera.

Matched automatically by: lens mount fits the camera mount · lens image circle covers the camera sensor — this camera: c-mount.

Need a compatible lens?

Tell us your sensor format, mount and field of view — we help you pick the right optics.

datasheetBasler a2A4508-6gc — manufacturer page →
datasheetBasler a2A4508-6gc — manufacturer page →
softwarepylon Camera Software Suite →
downloadsBasler software & SDK downloads →

Get a first image quickly with the pylon Viewer, then move into the pylon SDK for your application. These cameras are GenICam/GenTL-compliant, so any compliant vision software can drive them as well.

Software: pylon Camera Software Suite

1. Install the pylon Camera Software Suite
Download and install the pylon Camera Software Suite for your OS from Basler. This provides the pylon Viewer, the GenTL transport-layer producers and the pylon SDK (C/C++/.NET/Python). On Windows the installer adds the needed drivers; on Linux follow the included setup notes for USB and network permissions.
2. Connect the camera and check the link
Cable the camera to its matching interface: GigE Vision to a GigE port (use a quality cable and, ideally, a dedicated NIC with jumbo frames enabled), USB3 Vision to a USB 3.x port with the supplied cable, or CoaXPress to the frame grabber. Provide power where required (PoE, USB bus power, or PoCXP). Open the pylon Viewer and confirm the camera appears in the device list; for GigE, make sure the camera and NIC are on the same subnet.
3. Grab a first image and set exposure, gain and pixel format
Select the camera in the pylon Viewer and start a continuous grab. Adjust exposure time and gain until the image is well exposed (avoid clipped highlights), set the pixel format (e.g. Mono8 or a Bayer/RGB format), and focus the lens. Use a test pattern if the lens or scene is not ready yet.
4. Configure triggering and acquisition
Decide between free-run and triggered acquisition. For synchronized capture, set the trigger source (software or a hardware line on the I/O connector), trigger mode and any debounce or exposure mode, then verify timing. Note the parameter names you change in the Viewer feature tree, as you will reuse them in code.
5. Move to the SDK or a GenICam-compliant library
Recreate your settings in code with the pylon SDK (C, C++, .NET or Python) to open the device, apply the same features and pull frames into your pipeline; pylon vTools and pylon AI can add processing blocks. Because the cameras are GenICam/GenTL standard, third-party vision libraries work too. Once the image stream is stable, you can route frames to a deep-learning inspection such as Rosepetal for automated defect detection.
