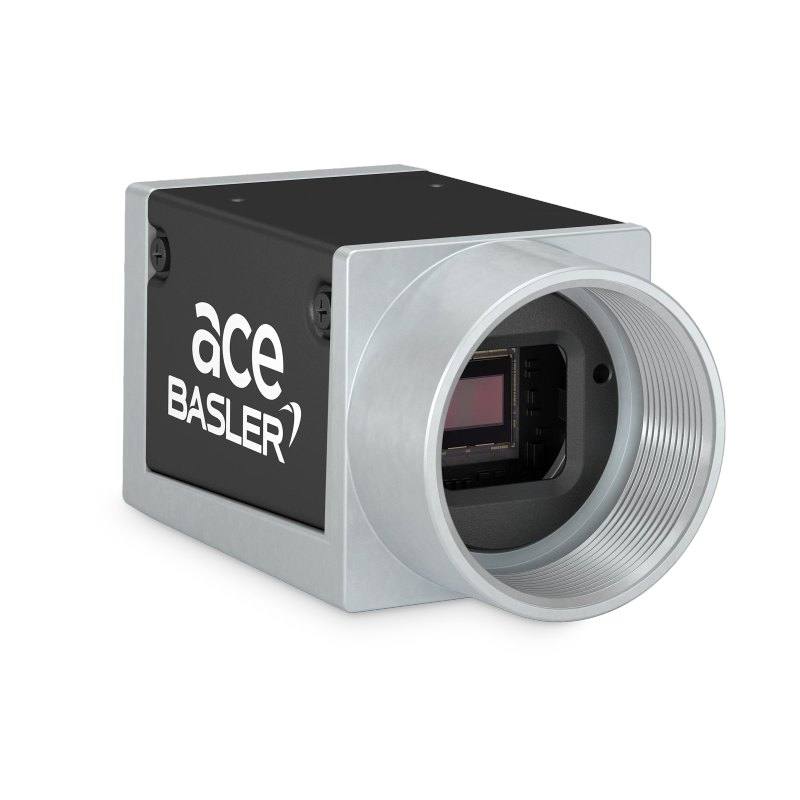

Basler ace acA1300-75gm / acA1300-75gc
acA1300-75gm
The Basler acA1300-75gm and acA1300-75gc are compact GigE area scan cameras from the ace family, featuring the onsemi PYTHON 1300 progressive scan CMOS sensor with global shutter at 1280 × 1024 pixel resolution (1.3 MP) and 4.8 µm pixel size. Both variants deliver up to 88 fps and are housed in a 42 × 29 × 29 mm box form factor weighing under 90 g. They connect via Gigabit Ethernet (GigE Vision / GenICam compliant), support Power over Ethernet (IEEE 802.3af) or 12–24 VDC, and provide one opto-coupled input, one opto-coupled output, and one GPIO line via a Hirose connector. IP30 rated, CE/RoHS/
- Brand
- Basler
- Camera type
- area scan
- Interface
- GIGE
- Resolution
- 1.3 MP
- Sensor manufacturer
- onsemi
- Sensor model
- PYTHON 1300
- Shutter
- global
- FPS
- 88 fps
- Mount
- c-mount
- Pixel size
- 4.8 µm
- IP rating
- ip30
- Supply voltage
- PoE (IEEE 802.3af) or 12–24 VDC
| Brand | Basler |
|---|---|
| Camera type | area scan |
| Resolution | 1.3 MP |
|---|---|
| Sensor manufacturer | onsemi |
| Sensor model | PYTHON 1300 |
| Shutter | global |
| Pixel size | 4.8 µm |
| FPS | 88 fps |
|---|
| Interface | GIGE |
|---|
| Mount | c-mount |
|---|
| Supply voltage | PoE (IEEE 802.3af) or 12–24 VDC |
|---|
| IP rating | ip30 |
|---|---|
| Operating temperature | 0 – 50 °C |
| Dimensions | 42 × 29 × 29 mm |
|---|---|
| Weight | 90 g |
