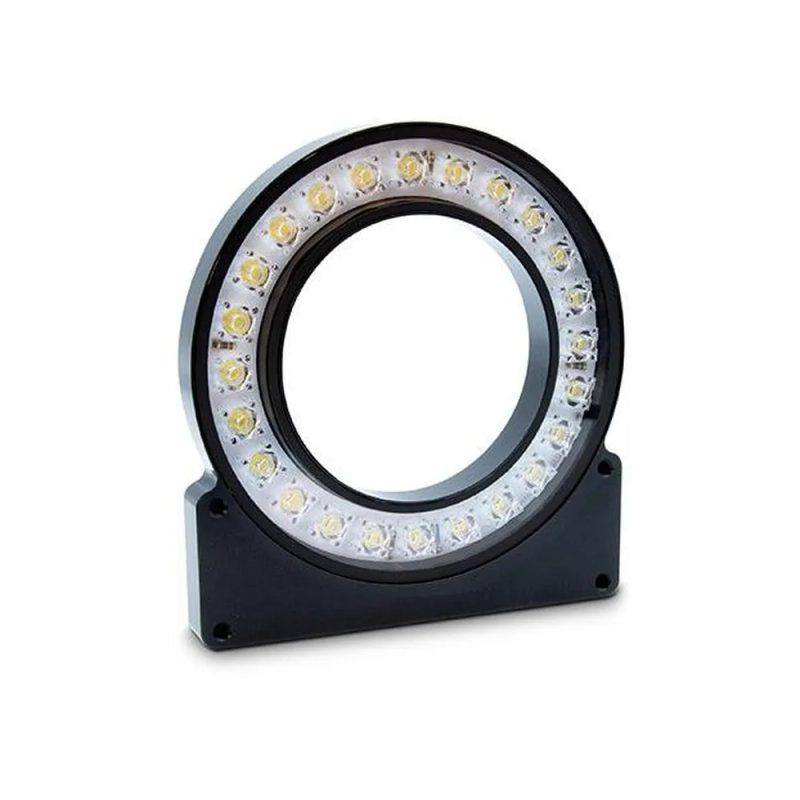

Basler Standard Light Ring-120OD Power White
Standard Light Ring-120OD_Power-W
The Basler Standard Light Ring-120OD_Power-W is the high-power variant of Basler's 120 mm outer-diameter ring light family, producing white (5000 K) direct illumination at 16 W / 900 mA continuous. It features a 20° emission angle, 87 mm inner diameter, and a recommended working distance of 250–750 mm, making it suited for inspection tasks at greater standoff distances than the standard-power model. The light operates at 24 VDC in both voltage-controlled (standalone) and current-controlled (with Basler SLP Controller) modes, supports strobe triggering with pulse widths from 100 µs, and carries IP54 protection with CE, RoHS, FCC, and UKCA certifications.
- Lighting type
- Ring light
- Working distance
- 250–750 mm (recommended)
- Inner diameter
- 87 mm
- Illuminated area
- 87–121 mm luminous area
- Available wavelengths
- White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm)
- Color temperature
- 5000 K
- Power consumption
- 16 W
- Supply voltage
- 24 VDC ±5%
- IP rating
- IP54
- Dimensions
- 130 × 141 × 12 mm (H × W × D)
- Weight
- 350 g
- Operating temperature
- 10–30 °C (up to 45 °C with thermal management)
| Lighting type | Ring light |
|---|
| Working distance | 250–750 mm (recommended) |
|---|---|
| Available wavelengths | White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm) |
| Color temperature | 5000 K |
| Power consumption | 16 W |
|---|---|
| Supply voltage | 24 VDC ±5% |
| IP rating | IP54 |
|---|---|
| Operating temperature | 10–30 °C (up to 45 °C with thermal management) |
| Inner diameter | 87 mm |
|---|---|
| Illuminated area | 87–121 mm luminous area |
| Dimensions | 130 × 141 × 12 mm (H × W × D) |
|---|---|
| Weight | 350 g |
| Housing material | Black anodized aluminum with PMMA light cover |
