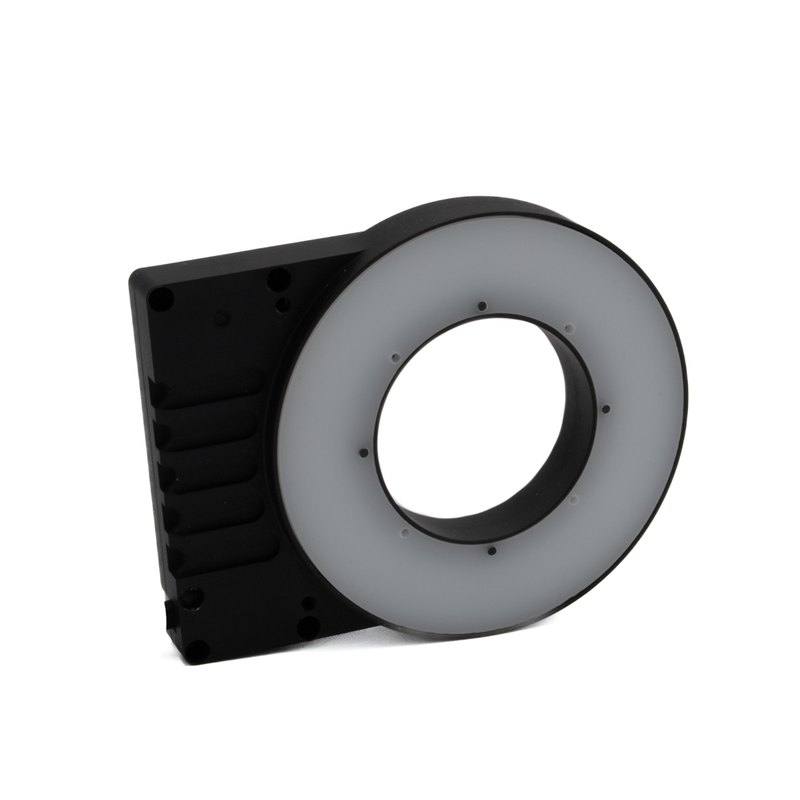

DCM Sistemes ALB0804A Direct High-Power Ring Light

Where a ring light like this earns its keep is on flat, matte surfaces. Direct frontal lighting brings out features that lie in the plane of the part such as printed labels, fiducial marks, etched or laser-marked codes, and the topology of a substrate, because the light returns evenly into the lens rather than glancing off at an angle. The ALB0804A is offered in a wide range of wavelengths (UV 365 and 400 nm, blue 470 nm, green 525 nm, red 630 nm, IR 850 nm and white), and that choice is a real design lever: red 630 nm or IR 850 nm is forgiving and penetrates well for general surface and code reading, blue and green sharpen contrast on specific dyes and substrates, and the UV variants excite fluorescence for verification or invisible-mark tasks. Emission angle is also a selectable parameter, with narrow 18 degrees, medium 21 degrees and wide 40 degrees beams plus a diffuse variant, so you can concentrate flux into a tight, bright spot at distance or spread an even wash across a broader field.

On the integration side the ALB0804A is deliberately simple. It runs directly from 24 VDC (+/-8%) and integrates the iBlueDrive driver, so no separate external lighting controller is required, which removes a box, a cable run and a configuration step from the cell. It supports both continuous operation and strobe/iBlueDrive overdrive, meaning you can run it steady for a static inspection or pulse it in sync with the camera trigger to freeze motion and momentarily push extra brightness onto fast-moving parts. The red variant draws 5.5 W. Connection is via a 3-pin aerial connector on a 150 mm pigtail. The IP40 rating and 0 to 40 C operating range place this in clean, dry indoor environments such as electronics, packaging and printing lines rather than washdown or heavy-contamination zones. A diffuse emission variant (/AD) is available, and optional polarizer, diffuser and antiglare filters let you tame residual glare on semi-glossy parts.
