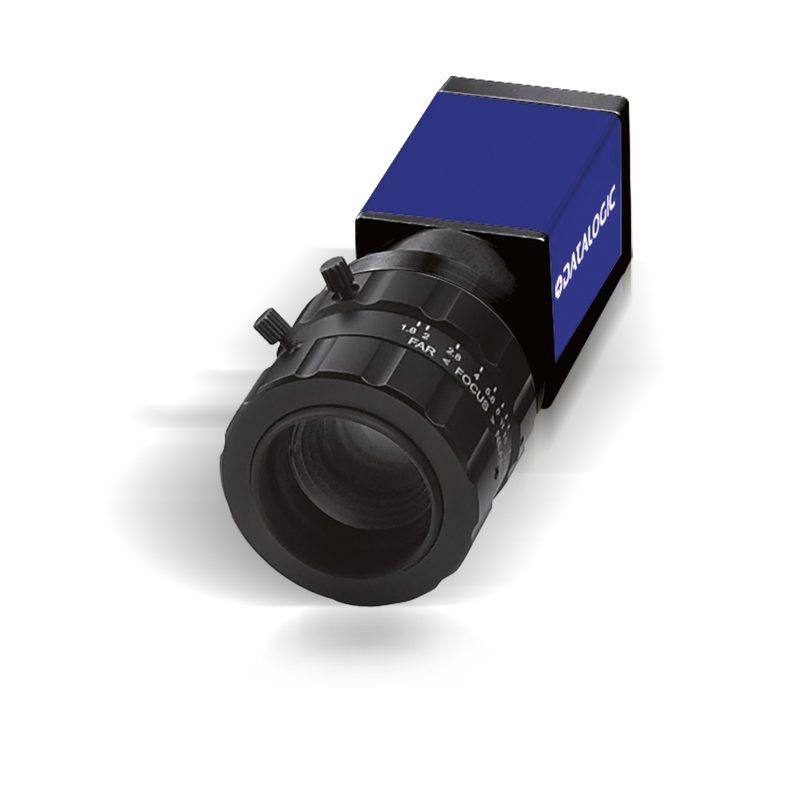

Datasensing CAM-E181C-GE (E181C)
CAM-E181C-GE
The CAM-E181C-GE (marketed as the E181C) is part of Datasensing's E1xx/M1xx series of compact GigE Vision area-scan cameras designed for the MX-E embedded vision platform. It features a 1920×1200-pixel 2/3" global-shutter CMOS sensor with 4.8 µm square pixels, delivering 48–50 full-resolution frames per second with partial-scan support for higher rates. The camera is powered via PoE or 12–24 VDC, uses a C-Mount lens interface, and is housed in a compact 42×29×29 mm IP30-rated enclosure with trigger and strobe I/O. Compliant with CE, FCC, KCC, and RoHS standards; compatible with Datalogic/Datasensing Impact Software.
- Camera type
- Area Scan
- Interface
- GigE Vision (1000 Base-T)
- Resolution
- 2.3 MP
- Horizontal resolution
- 1920 px
- Mono / color
- Color
- Shutter
- Global
- FPS
- 48–50 FPS
- Mount
- C-Mount
- Pixel size
- 4.8 µm
- IP rating
- IP30
- Dimensions
- 9.2 mm × 5.8 mm
- Operating temperature
- 0–50°C
| Camera type | Area Scan |
|---|
| Resolution | 2.3 MP |
|---|---|
| Horizontal resolution | 1920 px |
| Mono / color | Color |
| Shutter | Global |
| Pixel size | 4.8 µm |
| FPS | 48–50 FPS |
|---|
| Interface | GigE Vision (1000 Base-T) |
|---|
| Mount | C-Mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | 0–50°C |
| Dimensions | 9.2 mm × 5.8 mm |
|---|
