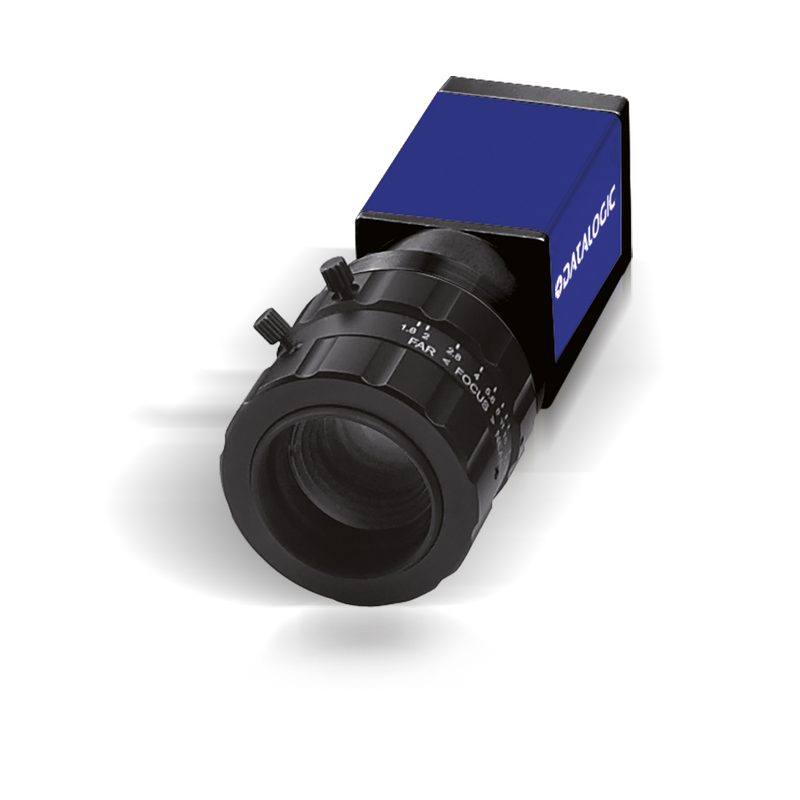

Datasensing CAM-M197-GE GigE Area Scan Camera
CAM-M197-GE
The CAM-M197-GE is part of Datasensing's (formerly Datalogic) M-Series compact GigE industrial cameras. It uses a 1/2.5" progressive-scan CMOS sensor with rolling shutter, 2592×1944 pixel resolution (≈5 MP), and 2.2×2.2 µm square pixels at up to 14 full-resolution fps. The camera features a C-mount lens interface, supports Power over Ethernet (PoE) or 12 VDC, and has a compact 42×29×29 mm housing rated IP30 for operation from 0 to 50°C. It is compatible with Datalogic IMPACT Software Release 11.0.0 or greater and integrates trigger/strobe I/O via a 6-pin Hirose connector.
- Camera type
- Area Scan
- Interface
- GigE
- Resolution
- ~5 MP
- Horizontal resolution
- 2592 px
- Mono / color
- Grayscale (Mono)
- Shutter
- Rolling Shutter
- FPS
- 14 fps
- Pixel size
- 2.2 × 2.2 µm
- IP rating
- IP30
- Dimensions
- 5.70 mm (H) × 4.28 mm (V)
- Weight
- 112 g
- Operating temperature
- 0 to 50°C
| Camera type | Area Scan |
|---|
| Resolution | ~5 MP |
|---|---|
| Horizontal resolution | 2592 px |
| Mono / color | Grayscale (Mono) |
| Shutter | Rolling Shutter |
| Pixel size | 2.2 × 2.2 µm |
| FPS | 14 fps |
|---|
| Interface | GigE |
|---|
| Mount | C-mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | 0 to 50°C |
| Dimensions | 5.70 mm (H) × 4.28 mm (V) |
|---|---|
| Weight | 112 g |
