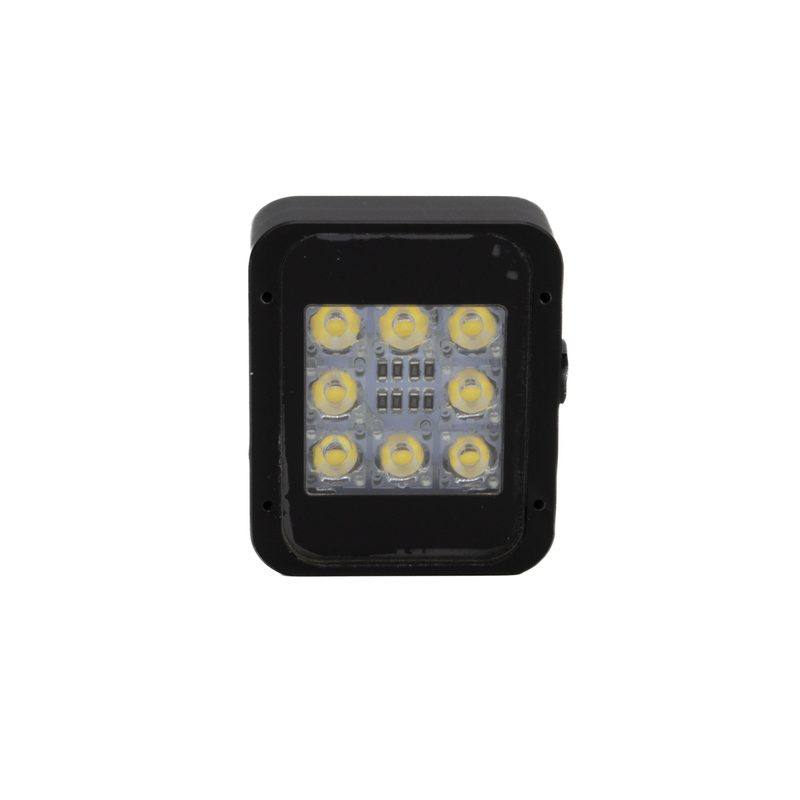

DCM Sistemes PRC0604C Direct Light Projector
PRC0604C
The PRC0604C is a compact high-powered LED light projector from DCM Sistemes designed to illuminate large areas from a small, space-efficient housing (60×50 mm). It uses direct (bright-field) illumination at a 40° emission angle, operating on 24 V DC at 5.5 W. Available in UV (400 nm), blue (470 nm), green (525 nm), red (630 nm), near-IR (850 nm), and white, it supports both continuous and strobe drive modes via a 3-pin cable connector. The unit is rated IP65 for industrial environments.
- Supply voltage
- 24 V DC
- Power consumption
- 5.5 W
- IP rating
- IP65
- Available wavelengths
- 400 nm (UV), 470 nm (Blue), 525 nm (Green), 630 nm (Red), 850 nm (IR), White
- Dimensions
- 60 × 50 mm
- Driver technology
- 24 V DC input
| Available wavelengths | 400 nm (UV), 470 nm (Blue), 525 nm (Green), 630 nm (Red), 850 nm (IR), White |
|---|
| Supply voltage | 24 V DC |
|---|---|
| Power consumption | 5.5 W |
| Driver technology | 24 V DC input |
| IP rating | IP65 |
|---|
| Dimensions | 60 × 50 mm |
|---|
