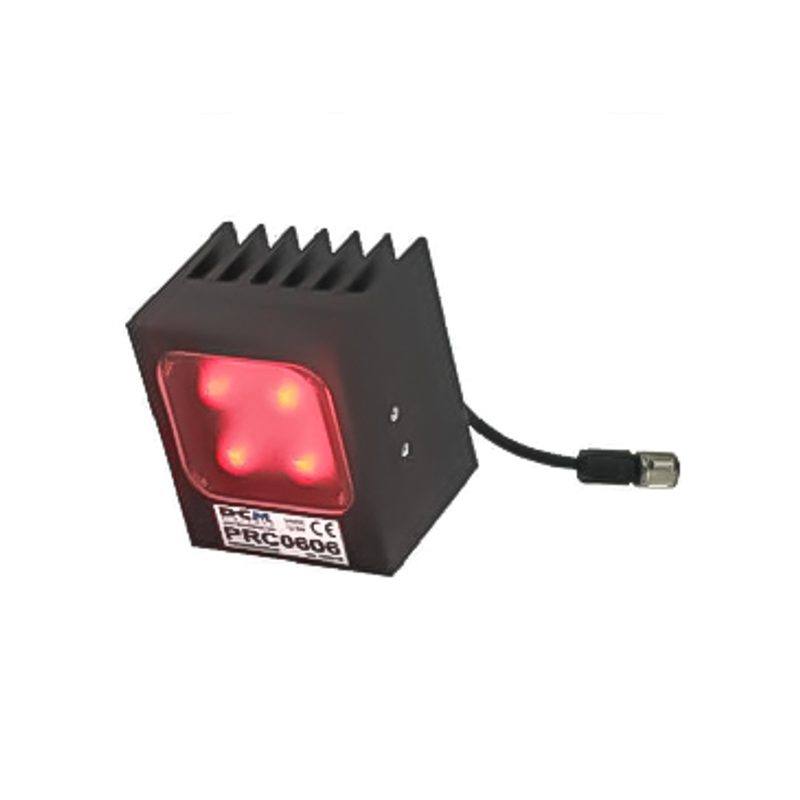

DCM Sistemes PRC0606B Compact High-Power LED Projector
PRC0606B
The PRC0606B is a compact projector-type LED light from DCM Sistemes' PRC series, housing 4 high-power LEDs in a 75×66×55 mm anodized aluminium body. It operates on 24 V DC and provides direct (bright-field) illumination, emphasising textures, reliefs, and fissures. The standard model carries an IP40 rating with optional IP65/IP67 modifier variants, and supports continuous and strobe operation via NPN (default) or PNP control input. Available wavelengths span UV (400 nm), blue (470 nm), green (525 nm), red (630 nm), IR (850/880 nm), white, and RGB; emission angle is selectable as narrow (/AN), medium (/AM, default), wide (/AW), or oval (/AO) at time of order.
- Color / wavelength
- 850 nm (IR; variant-dependent: 400/470/525/630/850/880 nm, White, RGB)
- Mode
- Continuous and strobe
- Working distance
- >50 mm (RWD)
- Available wavelengths
- 400 nm (UV), 470 nm (Blue), 525 nm (Green), 630 nm (Red), 850/880 nm (IR), White, RGB
- Driver technology
- 24 V DC constant-voltage input, NPN/PNP control
- Power consumption
- 6 W (IR 850 nm); up to 12 W (UV 400 nm)
- Supply voltage
- 24 V DC (±8%)
- IP rating
- IP40 standard; IP65/IP67 with modifier
- Dimensions
- 75 × 66 × 55 mm
- Weight
- 375 g
- Housing material
- Anodized aluminium
- Operating temperature
- 0–40 °C
| Color / wavelength | 850 nm (IR; variant-dependent: 400/470/525/630/850/880 nm, White, RGB) |
|---|---|
| Working distance | >50 mm (RWD) |
| Available wavelengths | 400 nm (UV), 470 nm (Blue), 525 nm (Green), 630 nm (Red), 850/880 nm (IR), White, RGB |
| Mode | Continuous and strobe |
|---|---|
| Driver technology | 24 V DC constant-voltage input, NPN/PNP control |
| Power consumption | 6 W (IR 850 nm); up to 12 W (UV 400 nm) |
| Supply voltage | 24 V DC (±8%) |
| IP rating | IP40 standard; IP65/IP67 with modifier |
|---|---|
| Operating temperature | 0–40 °C |
| Dimensions | 75 × 66 × 55 mm |
|---|---|
| Weight | 375 g |
| Housing material | Anodized aluminium |
