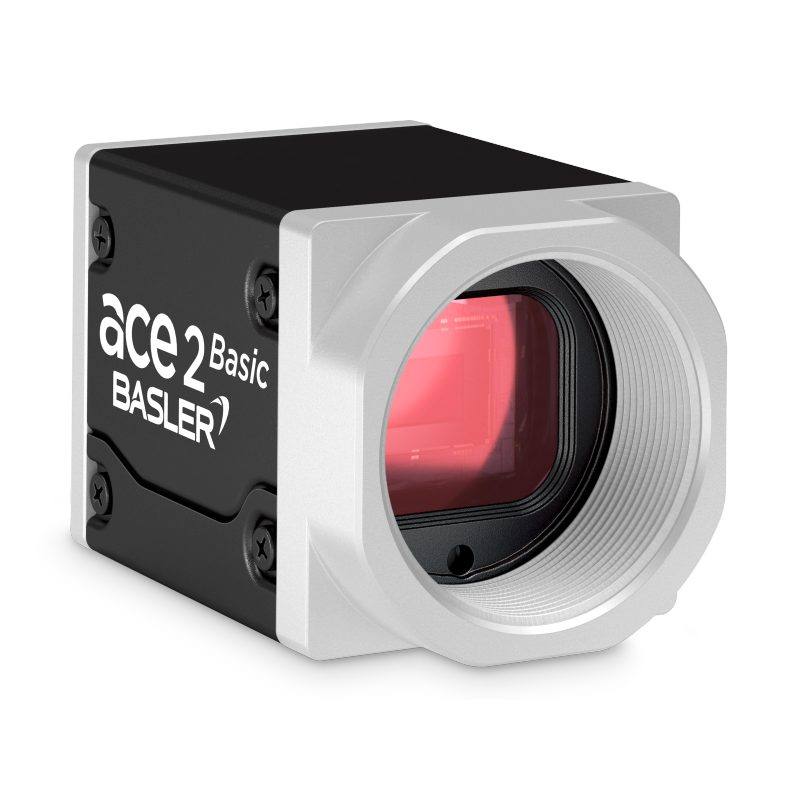

Basler ace 2 a2A2048-114ucBAS
a2A2048-114uc
The Basler a2A2048-114ucBAS is a compact USB 3.0 area-scan camera in the ace 2 R series, featuring the Sony IMX900-AQR-C Pregius S CMOS sensor in a 1/3.1" format with 2.25 µm pixels and a global shutter. It outputs 2048 × 1536 pixels at up to 114 fps with 8-, 10-, or 12-bit depth and supports visible plus NIR spectrum imaging via a removable IR-cut filter. The camera conforms to USB3 Vision and GenICam standards, is powered entirely over USB, and carries an IP30 rating in a 42.8 × 29 × 29 mm housing.
- Camera type
- Area Scan
- Interface
- USB 3.0
- Resolution
- 3.2 MP
- Horizontal resolution
- 2048 px
- Mono / color
- Color
- Sensor model
- IMX900-AQR-C
- Shutter
- Global Shutter
- FPS
- 114 fps
- Mount
- C-Mount
- Pixel size
- 2.25 µm
- IP rating
- IP30
- Dimensions
- 4.61 × 3.46 mm
| Camera type | Area Scan |
|---|
| Resolution | 3.2 MP |
|---|---|
| Horizontal resolution | 2048 px |
| Mono / color | Color |
| Sensor model | IMX900-AQR-C |
| Shutter | Global Shutter |
| Pixel size | 2.25 µm |
| FPS | 114 fps |
|---|
| Interface | USB 3.0 |
|---|
| Mount | C-Mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | −10 to 60 °C |
| Dimensions | 4.61 × 3.46 mm |
|---|---|
| Housing material | Box |
| Weight | 85 g |
