Light Back-100x100-White

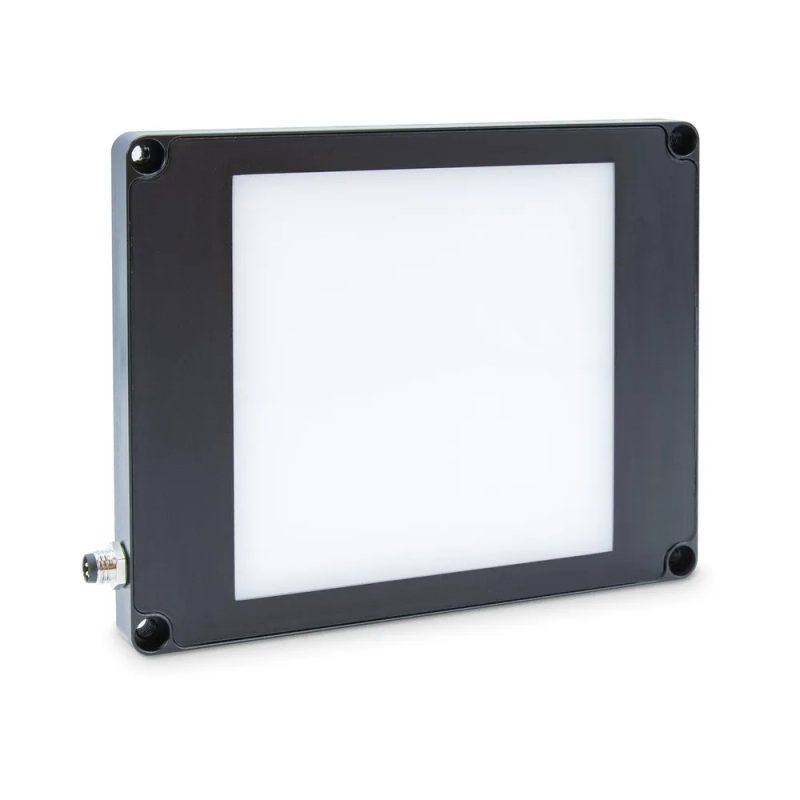

Standard Light Back-100x100-White
The Basler Standard Light Back-100x100-White is a diffuse LED backlight with a 100 mm × 100 mm light-emitting surface and an overall footprint of 120 mm × 150 mm × 12 mm. It operates from a 24 VDC supply and consumes 11 W / 600 mA. It supports both voltage-controlled (continuous and triggered) operation and current-controlled operation when used with an external Basler SLP lighting controller, with pulse widths from 100 µs to continuous. The connector is a 4-pin M8 male socket and the unit carries IP54 protection.
- Lighting type
- Back Light
- Illuminated area
- 100 mm × 100 mm
- Emission angle
- Diffuse
- Available wavelengths
- White
- Color temperature
- 5000 K (typical)
- Driver technology
- Current controlled (external controller) / Voltage controlled (24 V steady/triggered)
- Power consumption
- 11 W / 600 mA
- Supply voltage
- 24 VDC (±5 %)
- IP rating
- IP54
- Dimensions
- 120 mm × 150 mm × 12 mm
- Weight
- 380 g
- Operating temperature
- 10–30 °C
| Lighting type | Back Light |
|---|
| Emission angle | Diffuse |
|---|---|
| Available wavelengths | White |
| Color temperature | 5000 K (typical) |
| Driver technology | Current controlled (external controller) / Voltage controlled (24 V steady/triggered) |
|---|---|
| Power consumption | 11 W / 600 mA |
| Supply voltage | 24 VDC (±5 %) |
| IP rating | IP54 |
|---|---|
| Operating temperature | 10–30 °C |
| Illuminated area | 100 mm × 100 mm |
|---|
| Dimensions | 120 mm × 150 mm × 12 mm |
|---|---|
| Weight | 380 g |
