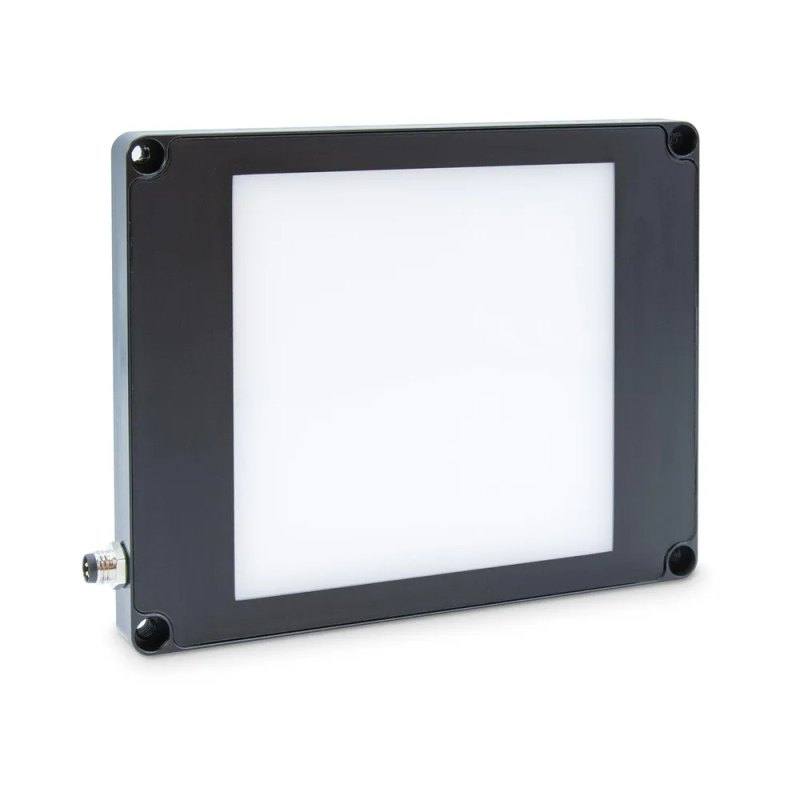

The Basler Standard Light Back-50x100 is a diffuse backlight with a 50 mm x 100 mm light-emitting surface, designed to be placed behind an object for checking and measuring outlines/silhouettes. It is offered in four color SKUs: White (5000 K, order no. 2200000725), Red (625 nm typ.), Blue (465 nm typ., order no. 2200000798) and IR (850 nm typ., order no. 2200000860). All variants run on 24 VDC (+/-5%) at 6 W and can be current-controlled with a Basler Lighting Controller or voltage-controlled (continuous or triggered) without an external controller, supporting pulse widths from 100 us to infinite. The housing measures 100 x 120 x 12 mm, weighs 250 g, is rated IP54 and uses an M8 4-pin male connector.
Brand
Basler
Lighting type
Backlight
Color / wavelength
White / Red (625 nm) / Blue (465 nm) / IR (850 nm)
Available wavelengths
White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm)
Color temperature
5000 K (White variant)
Mode
Continuous or triggered (pulse width 100 us to infinite)
Diffuser
Yes (diffuse emission)
Emission angle
Diffuse
Illuminated area
50 mm x 100 mm light-emitting surface
Controller required
Optional - works with Basler Lighting Controller (current-controlled) or standalone (voltage-controlled)
Driver technology
Current-controlled (external controller) or voltage-controlled
The Basler Standard Light Back-50x100 is a diffuse LED backlight: a 50 mm x 100 mm light-emitting surface designed to sit behind the part so the camera sees a bright, even field interrupted only by the object's silhouette. Backlighting is the geometry of choice when you care about an outline rather than a surface texture. Because the emission is diffuse (not directional), the panel washes out surface detail and reflections and instead delivers maximum edge contrast at the object boundary, which is exactly what dimensional gauging, presence/absence and outline-defect algorithms want to threshold against. The lit area dictates the maximum part footprint you can profile in a single view: parts up to roughly 50 x 100 mm fit fully within the field, and the long-and-narrow aspect ratio suits elongated components, gaps and web-like features.
Wavelength is a deliberate selection here because the unit ships in four color SKUs that share one body: White (5000 K, order no. 2200000725), Red (625 nm typ.), Blue (465 nm typ., order no. 2200000798) and IR (850 nm typ., order no. 2200000860). With a backlight the wavelength does not color the part, it sets the silhouette's crispness and how the camera and any optical filter respond. Blue's shorter wavelength gives the tightest edge definition for fine measurement; Red is a robust general-purpose choice; IR at 850 nm is monochrome-camera and band-pass-filter friendly, letting you reject ambient light for stable thresholds; White suits color cameras or mixed work. Pick the variant to match the sensor (mono vs. color) and any filter on the lens, since all four are mechanically and electrically identical.
Electrically the panel runs on 24 VDC (+/-5%) at 6 W and offers two drive paths without redesign. It can be current-controlled from a Basler Lighting Controller, or voltage-controlled standalone with no external controller, running either continuous or triggered with pulse widths from 100 us to infinite. That flexibility lets a simple installation wire it straight to a 24 V rail for continuous on, while a higher-throughput line can strobe it in sync with the camera trigger to freeze motion and extend LED life. Connection is an M8 4-pin male connector; the housing is 100 x 120 x 12 mm, weighs 250 g and is rated IP54 for protected indoor/light-splash environments. The 12 mm profile keeps it compact behind a conveyor or fixture, and the specified operating range of 10 C to 30 C points to a climate-controlled production setting rather than a hot or outdoor one.
Best for
Dimensional measurement and outline gauging of parts up to ~50 x 100 mm, where the diffuse backlight produces a high-contrast silhouette for sub-pixel edge thresholding
Presence/absence and completeness checks on packaging, where a part either breaks the bright field or does not
Profile and outline defect detection on stamped, molded or machined components against a uniform backlit field
IR-based inspection (850 nm variant) paired with a monochrome camera and band-pass filter to suppress ambient light for stable, repeatable thresholds
Strobed silhouette capture on moving lines, triggering the backlight with pulse widths from 100 us in sync with the camera to freeze motion
Selection notes
Confirm the part fits the 50 x 100 mm emitting area in a single view; the long, narrow aspect ratio favors elongated parts, and larger objects need a bigger backlight or a stitched/multi-camera setup
Choose the wavelength SKU to match your camera and filter: Blue (465 nm) for the sharpest edges in fine measurement, IR (850 nm) for mono cameras with a band-pass filter to reject ambient, Red (625 nm) as a general default, White (5000 K) for color work
Decide the drive scheme up front: voltage-controlled standalone is the simplest wiring to a 24 VDC rail, while current-controlled with a Basler Lighting Controller gives tighter intensity control and clean strobing
Plan for triggered operation on fast lines; the 100 us to infinite pulse-width range lets you strobe in sync with the camera to freeze motion and extend LED life, but the controller/IO must supply the trigger
Verify the environment suits the IP54 rating and the 10 C to 30 C operating window; this is a protected, climate-controlled fit, not a washdown or high-temperature one. Budget for the 24 VDC (+/-5%) 6 W supply and the M8 4-pin male connector
Specifications: General
Brand
Basler
Lighting type
Backlight
Specifications: Interface
Connection
M8 socket, male, 4-pin
Specifications: Optical
Color / wavelength
White / Red (625 nm) / Blue (465 nm) / IR (850 nm)
Available wavelengths
White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm)
Color temperature
5000 K (White variant)
Diffuser
Yes (diffuse emission)
Emission angle
Diffuse
Specifications: Electrical
Mode
Continuous or triggered (pulse width 100 us to infinite)
Controller required
Optional - works with Basler Lighting Controller (current-controlled) or standalone (voltage-controlled)
Driver technology
Current-controlled (external controller) or voltage-controlled
Power consumption
6 W
Supply voltage
24 VDC (+/-5%)
Specifications: Environment
IP rating
IP54
Operating temperature
10 C to 30 C
Specifications: Geometry
Illuminated area
50 mm x 100 mm light-emitting surface
Specifications: Mechanical
Dimensions
100 mm x 120 mm x 12 mm
Weight
250 g
