DCM Sistemes PLD0602B Direct Linear Bar Light

PLD0602B

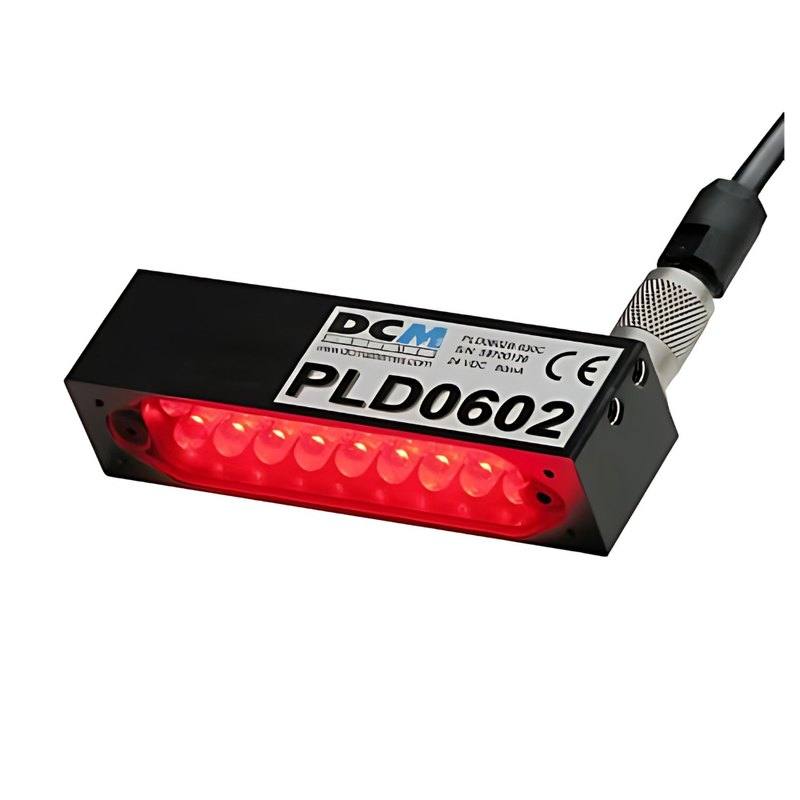

The PLD0602B is the smallest model of DCM Sistemes' PLD series of direct linear light projectors, with overall dimensions of 86x20x24 mm, a 64x16 mm active surface and an 80 g weight in a black anodized aluminium housing. It is a direct (0 degree emission) bar light that emphasizes textures, reliefs and fissures by casting shadows, with a recommended working distance greater than 50 mm and an IP40 rating (IP43 when mounted so light falls vertically). It runs from 24 VDC and is available in multiple wavelengths (UV 365 nm, UV 400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB and White), with a base 2P chassis connector for continuous/pulsed/strobe modes or a 3P aerial inline connector on iBlueDrive (i) variants that integrate continuous, strobe and dimming control. Type C continuous consumption at 24 VDC ranges from 0.6 W (green) up to about 2.2 W (IR) depending on color.

Brand
DCM Sistemes
Lighting type
Bar (direct linear light projector)
Color / wavelength
White (also available: UV 365/400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB)
Available wavelengths
UV 365 nm, UV 400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB, White
Mode
Continuous (C), Pulsed (P, duty 1/2, Ton max 60 s), Strobe (S) and iBlueDrive powered (i)
Emission angle
Direct, 0 degree emission (narrow/directional)
Working distance
Recommended working distance > 50 mm
Controller required
No external controller required (iBlueDrive inline driver integrated on 'i' variants; strobe/dimming built in)
Driver technology
iBlueDrive inline (integrated continuous / strobe / dimming control)
IP rating
IP40 (IP43 when light falls vertically)
Illuminated area
Active emitting surface 64 x 16 mm
Power consumption
Type C @24 VDC: 0.6 W (green) to 2.2 W (IR); e.g. 1.3 W blue, 1.6 W white, 1.8 W red
Validate my application with RosepetalRequest a lighting studyRequest a technical quote

Technical overview

The DCM Sistemes PLD0602B is the smallest model in the PLD series of direct linear bar lights, built around a 64 x 16 mm active emitting surface inside an 86 x 20 x 24 mm black anodized aluminium housing weighing only 80 g. As a direct (0 degree) emitter it projects a tight, directional beam rather than diffuse fill, so it is engineered to rake across a surface and emphasize texture, relief and fissures through the shadows it casts. With a recommended working distance greater than 50 mm, it suits compact stations where a small bar must be tucked close to the part while still delivering high-contrast directional light.

Wavelength flexibility is a defining trait: the same body ships in UV 365 nm, UV 400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB and White. This lets the integrator match the color to the contrast needs of the material at hand without changing the mechanical design. Running from 24 VDC, continuous Type C consumption is modest and color dependent, from roughly 0.6 W on green up to about 2.2 W on IR, with white around 1.6 W, so thermal load and power budgeting stay simple even in dense multi-light layouts.

The PLD0602B supports continuous, pulsed (duty 1/2, Ton max 60 s) and strobe operation through its base 2P chassis connector, while the iBlueDrive 'i' variants add a 3P aerial inline connector (715 mm lead) with integrated continuous, strobe and dimming control, removing the need for a separate external controller. Environmental sealing is IP40, improving to IP43 when the unit is mounted so light falls vertically, and the operating range is 0 to 40 C. It is a directional, monochromatically configurable bar aimed at surface, defect, dimensional, OCR/OCV and packaging inspection across electronics, automotive, metal, packaging and printing lines.

Best for

  • Grazing/low-angle surface inspection where a directional 0 degree beam rakes the part to reveal scratches, dents, embossing, engraving and fissures through shadow contrast
  • Compact inspection stations with limited space, thanks to the 86 x 20 x 24 mm body, 80 g weight and recommended working distance just over 50 mm
  • Wavelength-tuned applications that benefit from a single mechanical design across UV (365/400 nm), blue, green, red, IR (850 nm), RGB and white
  • OCR/OCV and code reading on textured, stamped or laser-marked surfaces where directional light lifts characters off the background
  • High-speed lines needing pulsed or strobe operation, especially via iBlueDrive 'i' variants with integrated strobe and dimming and no external controller

Selection notes

  • This is a direct, narrow 0 degree emitter, not a diffuse light: it deliberately creates shadows, so it excels at relief and texture but is the wrong choice for glare-free even illumination of glossy or specular surfaces, where a diffuse or dome light fits better.
  • Pick the wavelength to match the task before ordering, since color is configured per unit: the body is offered in UV 365/400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB and White, and the wavelength is fixed per unit.
  • Decide between control approaches up front: the base 2P chassis connector covers continuous, pulsed and strobe but expects external power/control, whereas the iBlueDrive 'i' variant uses a 3P aerial inline connector with built-in continuous, strobe and dimming so no separate controller is required.
  • Plan for the working distance and footprint: with a 64 x 16 mm active surface and recommended WD greater than 50 mm, this smallest PLD model covers a short line; larger fields of view or longer parts may need a longer PLD model or multiple bars.
  • Mind the environment: IP40 rating (IP43 only when mounted so light falls vertically) and a 0 to 40 C operating range mean it is intended for relatively clean, controlled stations rather than washdown or harsh wet/dusty zones.

Specifications: General
BrandDCM Sistemes
Lighting typeBar (direct linear light projector)

Specifications: Interface
Connection2P male chassis connector (C/P/S); 3P aerial male inline connector, L=715 mm (iBlueDrive 'i')

Specifications: Optical
Color / wavelengthWhite (also available: UV 365/400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB)
Available wavelengthsUV 365 nm, UV 400 nm, Blue 470 nm, Green 525 nm, Red 630 nm, IR 850 nm, RGB, White
Emission angleDirect, 0 degree emission (narrow/directional)
Working distanceRecommended working distance > 50 mm

Specifications: Electrical
ModeContinuous (C), Pulsed (P, duty 1/2, Ton max 60 s), Strobe (S) and iBlueDrive powered (i)
Controller requiredNo external controller required (iBlueDrive inline driver integrated on 'i' variants; strobe/dimming built in)
Driver technologyiBlueDrive inline (integrated continuous / strobe / dimming control)
Power consumptionType C @24 VDC: 0.6 W (green) to 2.2 W (IR); e.g. 1.3 W blue, 1.6 W white, 1.8 W red
Supply voltage24 VDC +/-3% (base) / 24 VDC +/-8% (iBlueDrive)

Specifications: Environment
IP ratingIP40 (IP43 when light falls vertically)
Operating temperatureOperating 0 to 40 C (storage 0 to 60 C)

Specifications: Geometry
Illuminated areaActive emitting surface 64 x 16 mm

Specifications: Mechanical
Housing materialBlack anodized aluminium
Dimensions86 x 20 x 24 mm (overall)
Weight80 g
