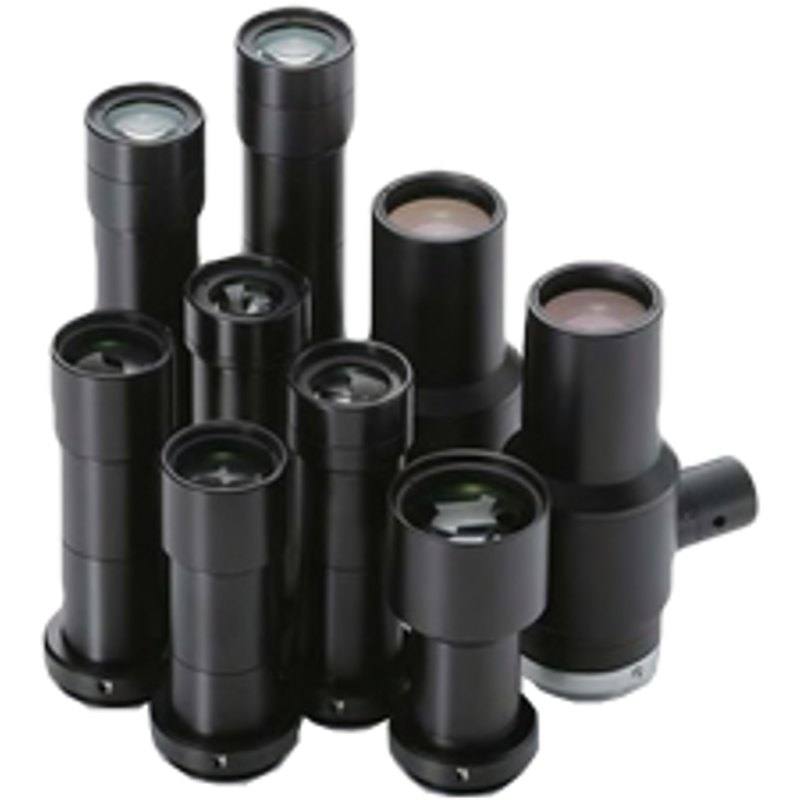

The 3Z4S-LE VS-TCH05-65-O is a straight-type, high-resolution telecentric lens designed for 2/3" C-mount megapixel machine vision cameras. It delivers 0.5x magnification at a 75.3 mm working distance (153.3 mm total object-to-image distance) with an effective F-number of 9.42 and numerical aperture of 0.027. TV distortion is exceptionally low at 0.02% maximum, making it ideal for dimensional measurement applications. The lens covers a field of view of approximately 16.8 × 14.2 mm on a 2/3" sensor and provides 3.0 mm depth of field with 94% relative illuminance across the visible spectrum (400–700 nm).
Brand
Omron / Sentech
Lens mount
C-mount
Magnification
0.5x
Working distance
75.3 mm
Aperture (f-number)
F9.42
Image circle / max sensor
2/3" (11 mm)
Optical resolution
Not specified by manufacturer; spatial resolution is 12.43 μm
The Omron 3Z4S-LE VS-TCH05-65-O is a straight-type, object-space telecentric lens delivering 0.5x magnification at a fixed 75.3 mm working distance, with a total object-to-image distance of 153.3 mm. Its C-mount interface and 11 mm (2/3") image circle make it a direct fit for the megapixel area-scan cameras most commonly used in gauging and precision inspection stations. At F9.42 (numerical aperture 0.027), the effective aperture is deliberately stopped down to achieve maximum depth of field — 3.0 mm — while preserving the near-telecentric ray geometry that is the optical precondition for accurate, parallax-free dimensional measurement. Installers can use this depth of field budget to tolerate modest part-height variation or fixture repeatability error without recalibration.
The headline specification for a gauging lens is TV distortion, and the VS-TCH05-65-O holds this to a maximum of 0.02% across the full 2/3" image circle. In practical terms, over a 16.8 mm horizontal field of view, 0.02% distortion corresponds to less than 3.4 µm of geometric error at the object plane — far below the pixel pitch of any 2/3" sensor used with this lens. The spatial resolution of 12.43 µm at 550 nm wavelength (covering the full visible band from 400 to 700 nm) means the lens can resolve detail finer than most sensor pixels, so optical resolution is not the limiting factor in a well-engineered system. Relative illuminance across the image circle is 94%, so edge-of-field vignetting is negligible and threshold-based measurement algorithms will behave consistently from image centre to corner.
At 70 g and Ø32 mm × 60.5 mm, the lens is compact enough for integration into multi-camera fixture arrays or tight enclosure designs. The straight-type form factor (as opposed to coaxial or right-angle variants) suits conventional front-lit or dome-lit layouts where the camera axis is perpendicular to the part surface. With a 75.3 mm working distance, there is practical clearance for ring lights, structured-light projectors, or low-profile back-light panels beneath the lens barrel. Because the working distance is fixed — telecentricity depends on maintaining the designed conjugate distances — installers must specify a rigid, fixed-height mount; no focus adjustment is provided or required once the system is set at the correct object plane.
Best for
Sub-pixel dimensional gauging of machined or stamped metal parts where edge-location accuracy demands less than 0.02% distortion across the field
Electronic component inspection on 2/3" megapixel cameras — lead coplanarity, pad pitch, and connector pin measurement at 0.5x magnification over a ~16.8 × 14.2 mm field
Pharmaceutical tablet and capsule dimensional verification on continuous or indexed conveyors, where the 3.0 mm depth of field absorbs minor height variation between units
Semiconductor wafer and substrate feature measurement in front-end or back-end-of-line stations requiring parallax-free imaging across a flat, fixed-height object plane
Precision OCR and 2D data-matrix reading on label or laser-marked parts where character geometry must be measured as well as decoded
Selection notes
Camera compatibility: the lens is designed for 2/3" C-mount megapixel sensors. Using it with a smaller sensor (e.g., 1/2") will crop the field but retain the telecentric and distortion performance; using it with a sensor larger than 2/3" will introduce vignetting at the corners because the 11 mm image circle will not cover the full sensor diagonal.
Fixed working distance: telecentricity requires operation at exactly 75.3 mm object distance. Any deviation — due to part height variation, bracket flex, or vibration — moves the object outside the calibrated conjugate and degrades both magnification constancy and distortion. Verify that fixture and mounting rigidity hold the object plane within the 3.0 mm stated depth of field.
Lighting pairing: at F9.42, the lens admits less light than a typical machine-vision prime. Back-lighting (silhouette mode) is the natural complement for edge-based gauging; if surface or reflected-light inspection is required, a high-intensity dome or co-axial illuminator is preferred over a ring light to maintain even illuminance given the 94% relative illuminance already achieved by the lens design.
No iris adjustment: the effective F-number is fixed at 9.42. Exposure must be managed entirely through lighting intensity, camera gain, or integration time — there is no variable aperture to adjust. This eliminates a source of recalibration error but means the system must be designed with adequate illumination headroom from the outset.
Wavelength range: the optical performance data (resolution, distortion, illuminance) is specified across 400–700 nm visible light. If near-infrared illumination is required for a specific application, verify with Omron whether the lens performance remains within tolerance at those wavelengths, as apochromatic correction and anti-reflection coatings are designed for the visible band.
Specifications: General
Brand
Omron / Sentech
Specifications: Optical
Lens mount
C-mount
Magnification
0.5x
Working distance
75.3 mm
Aperture (f-number)
F9.42
Image circle / max sensor
2/3" (11 mm)
Optical resolution
Not specified by manufacturer; spatial resolution is 12.43 μm
Telecentric
Yes
Specifications: Mechanical
Weight
70 g
Dimensions
Φ32 mm × L 60.5 mm
