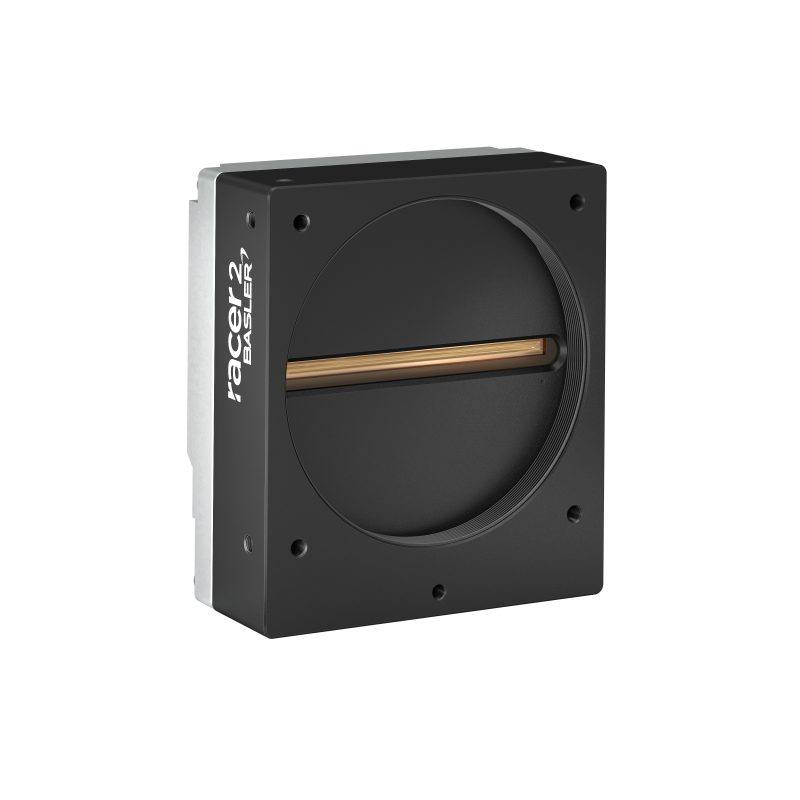

Basler racer 2 r2L16384-120cm
r2L16384-120cm
The Basler racer 2 r2L16384-120cm is a high-end line scan camera featuring the Gpixel GL3516 monochrome CMOS sensor with 16,384 × 2 pixels at 3.5 µm pitch and a 57.34 mm sensor format. It achieves up to 120 kHz in single-line mode and 60 kHz in dual-line mode, using two CXP-12 links (CoaXPress 2.0) for data transfer at up to 25 Gbps aggregate bandwidth. The camera supports Power over CoaXPress (PoCXP) at 24 VDC or auxiliary power, and exposes 3 differential GPIO lines for triggering and synchronization. Compliance includes CE, RoHS, UKCA, FCC, GenICam, and IP30, making it suited for demanding factory automation and web inspection tasks.
- Camera type
- Line Scan
- Interface
- 2× CXP-12 (CoaXPress 2.0)
- Horizontal resolution
- 16,384 px
- Resolution
- 0.033 MP
- Mono / color
- Monochrome
- Sensor model
- GL3516
- Shutter
- Global Shutter
- Line rate
- 120 kHz
- Mount
- M72 × 0.75
- Pixel size
- 3.5 × 3.5 µm
- IP rating
- IP30
- Dimensions
- 36 × 80 × 90 mm
| Camera type | Line Scan |
|---|
| Horizontal resolution | 16,384 px |
|---|---|
| Resolution | 0.033 MP |
| Mono / color | Monochrome |
| Sensor model | GL3516 |
| Shutter | Global Shutter |
| Pixel size | 3.5 × 3.5 µm |
| Line rate | 120 kHz |
|---|
| Interface | 2× CXP-12 (CoaXPress 2.0) |
|---|
| Mount | M72 × 0.75 |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | 0–50 °C |
| Dimensions | 36 × 80 × 90 mm |
|---|---|
| Weight | 420 g |
