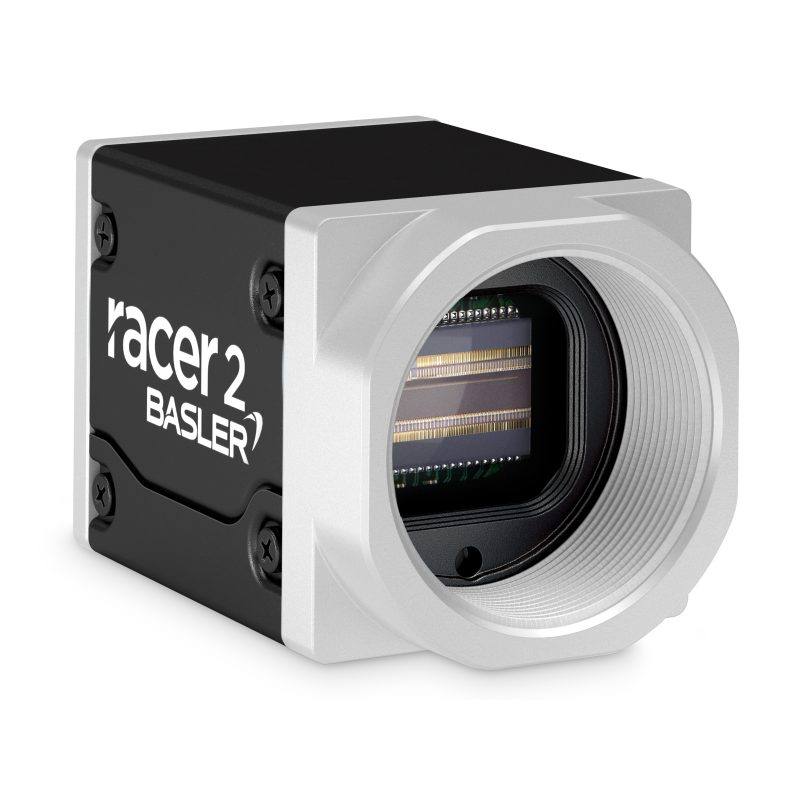

Basler racer 2 r2L4096-42cc
r2L4096-42cc
The Basler racer 2 r2L4096-42cc is a compact CoaXPress 2.0 (CXP-12) color line scan camera featuring the Gpixel GL3504 dual-line CMOS sensor at 4096 × 1 pixel resolution with a 3.5 µm pixel pitch, achieving a maximum line rate of 42.6 kHz. It supports global shutter and outputs 8, 10, or 12-bit pixel data over a single CXP-12 coax link (2.5–12.5 Gbps). Powered via Power over CoaXPress at 24 VDC (~3.6 W typical), the camera uses a C-mount lens interface and carries IP30 ingress protection. It complies with CE, UKCA, FCC, UL, GenICam, and CoaXPress 2.0 standards.
- Camera type
- Line Scan
- Interface
- CoaXPress CXP-12
- Horizontal resolution
- 4096 px
- Mono / color
- Color
- Sensor model
- GL3504
- Shutter
- Global Shutter
- Line rate
- 42.6 kHz
- Mount
- C-mount
- Pixel size
- 3.5 µm
- IP rating
- IP30
- Dimensions
- 48.9 x 29 x 29 mm
- Weight
- 85 g
| Camera type | Line Scan |
|---|
| Horizontal resolution | 4096 px |
|---|---|
| Mono / color | Color |
| Sensor model | GL3504 |
| Shutter | Global Shutter |
| Pixel size | 3.5 µm |
| Line rate | 42.6 kHz |
|---|
| Interface | CoaXPress CXP-12 |
|---|
| Mount | C-mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | −10 to +50 °C |
| Dimensions | 48.9 x 29 x 29 mm |
|---|---|
| Weight | 85 g |
