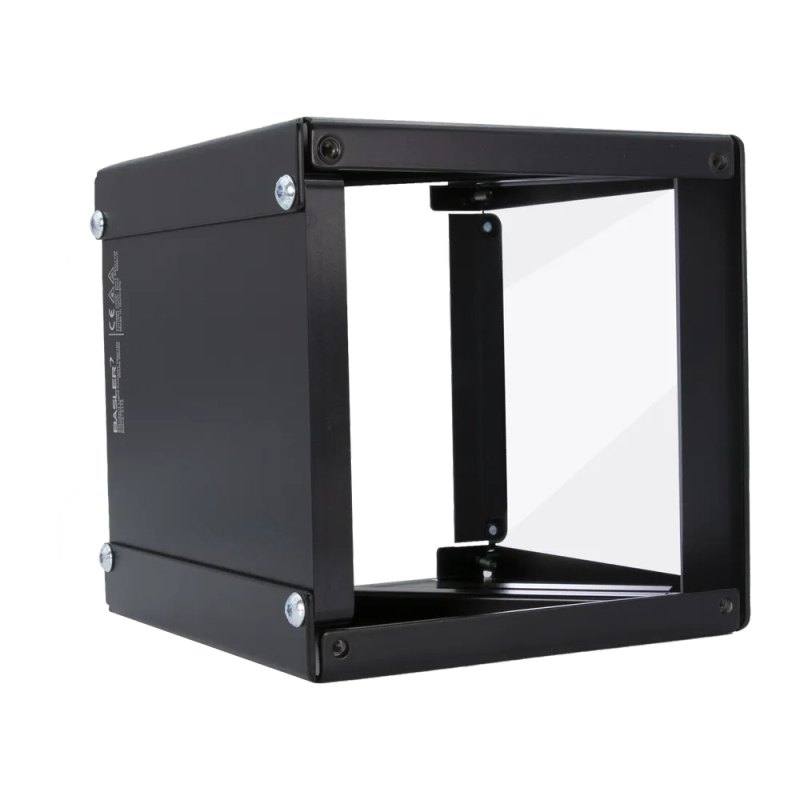

Basler Standard Light Coaxial-200x200-x
Standard Light Coaxial-200x200-x
The Standard Light Coaxial-200x200-x projects diffuse light through a semitransparent glass mirror coaxially with the camera optical axis, giving even, shadow-free illumination over a 200 x 200 mm field that is ideal for highly reflective and glossy objects. It is offered in four color SKUs: White (5000 K, order 2200000797), Red (625 nm, 2200000859), Blue (465 nm, 2200000828), and Infrared (850 nm, 2200000890). The light runs from 24 VDC at 22 W with an internal LED controller offering two operating modes (continuous and triggered), or can be current-controlled (1200 mA for W/R/B, 1500 mA for IR) and strobed via a Basler SLP Strobe Controller down to a 100 us minimum flash time. It uses a black aluminium housing with a glass antireflex cover, connects via a 4-pin M8 socket, weighs 3300 g, is rated IP54, and is recommended for ambient operation at 10-30 C (up to 45 C with added heat dissipation).
- Brand
- Basler
- Lighting type
- Coaxial (on-axis) light
- Color / wavelength
- White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm) - 4 SKUs
- Available wavelengths
- White 5000 K / Red 625 nm / Blue 465 nm / Infrared 850 nm
- Mode
- Continuous and triggered (internal controller); strobe via Basler SLP Strobe Controller
- Color temperature
- 5000 K (white variant)
- Working distance
- 1-30 mm recommended working distance
- Controller required
- No - internal LED controller with 2 modes; optional Basler SLP Strobe Controller for strobing
- Diffuser
- Yes - diffuse light emission via semitransparent glass mirror
- IP rating
- IP54
- Illuminated area
- 200 x 200 mm light-emitting surface
- Emission angle
- Diffuse (coaxial via semitransparent mirror)
| Brand | Basler |
|---|---|
| Lighting type | Coaxial (on-axis) light |
| Connection | M8 socket, 4-pin |
|---|
| Color / wavelength | White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm) - 4 SKUs |
|---|---|
| Available wavelengths | White 5000 K / Red 625 nm / Blue 465 nm / Infrared 850 nm |
| Color temperature | 5000 K (white variant) |
| Working distance | 1-30 mm recommended working distance |
| Diffuser | Yes - diffuse light emission via semitransparent glass mirror |
| Emission angle | Diffuse (coaxial via semitransparent mirror) |
| Mode | Continuous and triggered (internal controller); strobe via Basler SLP Strobe Controller |
|---|---|
| Controller required | No - internal LED controller with 2 modes; optional Basler SLP Strobe Controller for strobing |
| Driver technology | Internal LED controller with 2 operating modes; SLP Strobe Controller compatible |
| Power consumption | 22 W |
| Supply voltage | 24 VDC (+/- 5%, voltage-controlled) / +/-10% |
| IP rating | IP54 |
|---|---|
| Operating temperature | 10-30 C (up to 45 C with heat dissipation measures) |
| Illuminated area | 200 x 200 mm light-emitting surface |
|---|
| Housing material | Black aluminium housing with glass antireflex cover and semitransparent glass mirror |
|---|---|
| Dimensions | 250 x 250 x 250 mm (H x W x D) |
| Weight | 3300 g |
