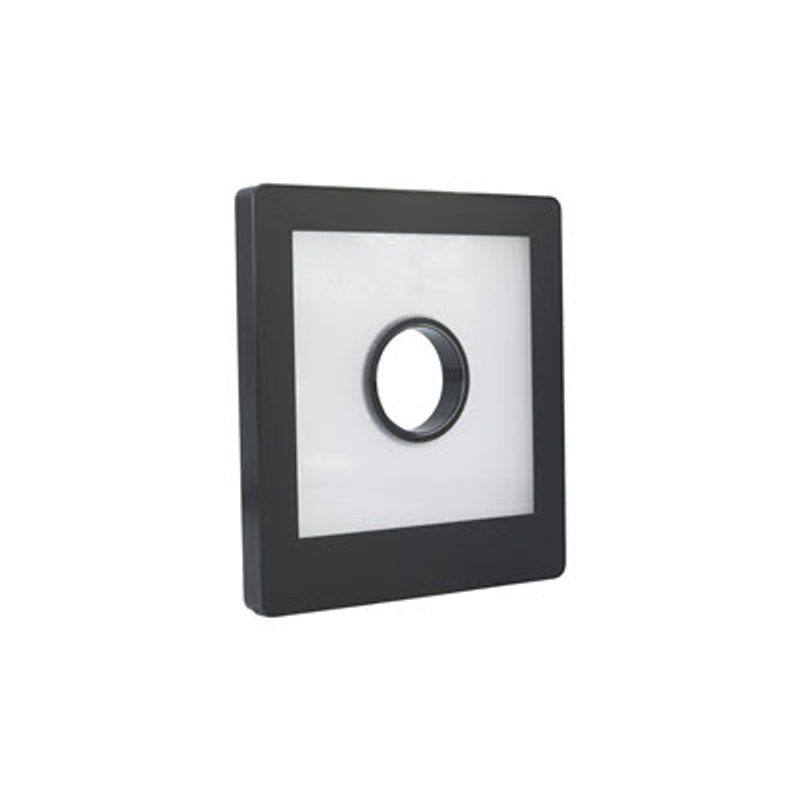

Standard Light Flatdome-100x100-W
The Basler Standard Light Flatdome-100x100-W is a flat dome diffuse axial illuminator with a 100×100 mm luminous area and a 36 mm central lens hole, designed for bright-field illumination of reflective and low-reflectivity surfaces. It features an internal LED controller supporting both continuous (voltage/current control) and strobe operating modes, and is also compatible with the Basler SLP Strobe Controller. The white LED array produces 1050 lumens at a color temperature of 5000 K, with a recommended working distance of 100–350 mm. The unit is housed in black anodized aluminum with a PMMA light cover, rated IP54, and connects via an M8 4-pin male connector.
- Lighting type
- Flat Dome (Diffuse Axial)
- Color / wavelength
- 5000 K (White)
- Color temperature
- 5000 K
- Working distance
- 100–350 mm
- Illuminated area
- 100 × 100 mm
- Available wavelengths
- White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm)
- Power consumption
- 11 W
- Supply voltage
- 24 VDC ±10%
- IP rating
- IP54
- Dimensions
- 140 × 130 × 12 mm (H × W × D)
- Driver technology
- Internal LED controller (voltage & current control modes)
- Weight
- 360 g
| Lighting type | Flat Dome (Diffuse Axial) |
|---|
| Color / wavelength | 5000 K (White) |
|---|---|
| Color temperature | 5000 K |
| Working distance | 100–350 mm |
| Available wavelengths | White (5000 K), Red (625 nm), Blue (465 nm), IR (850 nm) |
| Power consumption | 11 W |
|---|---|
| Supply voltage | 24 VDC ±10% |
| Driver technology | Internal LED controller (voltage & current control modes) |
| IP rating | IP54 |
|---|---|
| Operating temperature | 10–30 °C |
| Illuminated area | 100 × 100 mm |
|---|
| Dimensions | 140 × 130 × 12 mm (H × W × D) |
|---|---|
| Weight | 360 g |
| Housing material | Black anodized aluminum with PMMA light cover |
