Datasensing CAM-E198C-GE
CAM-E198C-GE

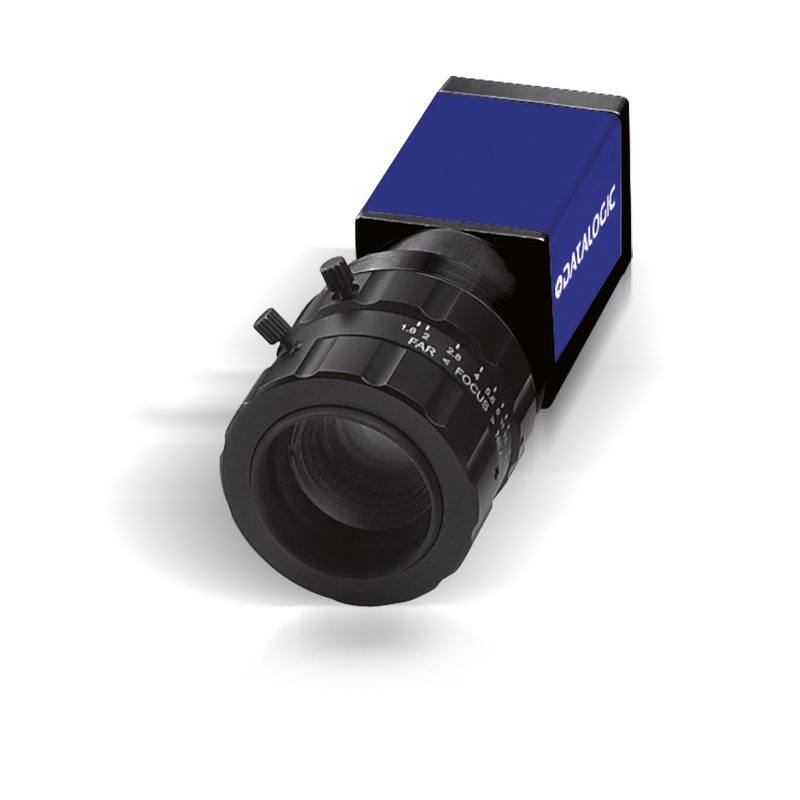

The CAM-E198C-GE (internal designation CAM-GE-2448x2048-20-C-E198C, P/N 959933045) is a GigE Vision area-scan camera featuring a 2/3" global-shutter CMOS sensor at 2448×2048 pixels with 3.45 µm square pixels, delivering up to 20 FPS at full resolution with higher rates available via partial scan. It connects via 1000 Base-T GigE and can be powered by PoE or 12–24 VDC, with a C-mount lens interface and IP30-rated compact housing (42×29×29 mm). The camera integrates with Datalogic/Datasensing MX-E and MX-G vision processors running Impact Software, and supports trigger and strobe I/O for flexible system integration.
- Camera type
- Area Scan
- Interface
- GigE (1000 Base-T)
- Resolution
- ~5 MP
- Horizontal resolution
- 2448 px
- Mono / color
- Color
- Shutter
- Global
- FPS
- 20 FPS
- Pixel size
- 3.45 µm
- Mount
- C-Mount
- IP rating
- IP30
- Operating temperature
- 0 … 50°C
- Dimensions
- 42 mm × 29 mm × 29 mm
| Camera type | Area Scan |
|---|
| Resolution | ~5 MP |
|---|---|
| Horizontal resolution | 2448 px |
| Mono / color | Color |
| Shutter | Global |
| Pixel size | 3.45 µm |
| FPS | 20 FPS |
|---|
| Interface | GigE (1000 Base-T) |
|---|
| Mount | C-Mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | 0 … 50°C |
| Dimensions | 42 mm × 29 mm × 29 mm |
|---|
