Is Datasensing CAM-GE-2448x2048-20-C-E198C compatible with Rosepetal?

Yes. It is marked as Rosepetal-ready: it is suitable for AI-based visual inspection. We can validate your case with sample images.

Which lens and lighting do I need?

It depends on the field of view, the working distance and the surface. We help you select the right lens + lighting combination.

Datalogic / Datasensing High-resolution cameras

Rosepetal compatible
Recommended by AIS Vision

Datasensing CAM-GE-2448x2048-20-C-E198C

CAM-E198C-GE

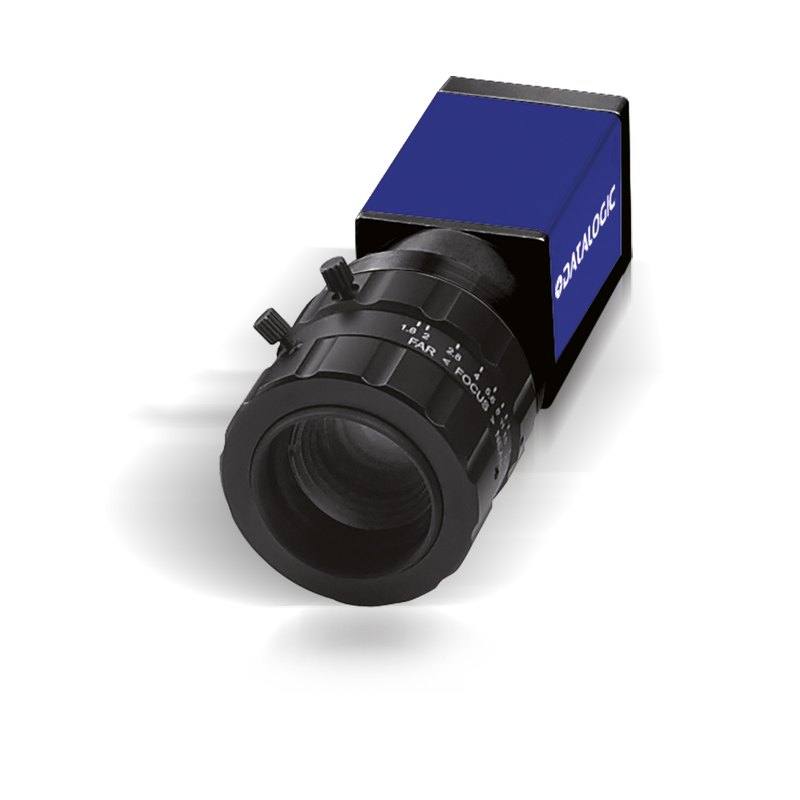

The Datasensing CAM-E198C-GE (E198C) is a compact GigE Vision color area-scan camera delivering 2448×2048 pixels (~5 MP) at 20 FPS via a 2/3" global-shutter CMOS sensor with 3.45 µm square pixels. It connects over Gigabit Ethernet (1000Base-T) and supports both PoE and 12–24 VDC auxiliary power, simplifying wiring. The C-mount lens interface and IP30-rated housing (42×29×29 mm) make it suitable for integration in MX-E Series vision processors running Impact Software. It complies with CE, FCC, KCC, and RoHS standards.

Brand: Datalogic / Datasensing
Camera type: area scan
Interface: GIGE
Resolution: 5 MP
Mono / color: color
Shutter: global
FPS: 20 fps
Mount: c-mount
Pixel size: 3.45 µm
IP rating: ip30
Dimensions: 3.45 × 3.45 µm
Operating temperature: 0 … 50°C

Validate my application with Rosepetal Request a technical quote Talk to AIS Vision

Specifications: General
Brand	Datalogic / Datasensing
Camera type	area scan

Specifications: Sensor
Resolution	5 MP
Mono / color	color
Shutter	global
Pixel size	3.45 µm

Specifications: Performance
FPS	20 fps

Specifications: Interface
Interface	GIGE

Specifications: Optics
Mount	c-mount

Specifications: Environment
IP rating	ip30
Operating temperature	0 … 50°C

Specifications: Mechanical
Dimensions	3.45 × 3.45 µm

We could not derive compatible lenses from the available data for this camera.

Matched automatically by: lens mount fits the camera mount · lens image circle covers the camera sensor — this camera: c-mount.

Need a compatible lens?

Tell us your sensor format, mount and field of view — we help you pick the right optics.

Follow these steps to bring a Datalogic / Datasensing camera online, grab a first image, and move toward an integrated inspection.

Software: IMPACT Software Suite

1. Install the IMPACT Software Suite and connect the camera
Install the IMPACT Software Suite on your PC, which provides both the configuration/viewer tools and the SDK. For a GigE Vision model (E100, M or U series), connect it to a dedicated NIC and, for USB3 models, use a certified USB3 cable and port. Power the camera and confirm it enumerates.
2. Bring the camera online and verify the link
For GigE Vision, put the camera and the host NIC on the same subnet (a static IP on the camera matching the NIC range is the most reliable starting point); for USB3, confirm the device is recognized. Open the IMPACT viewer/device tool, discover the camera, and verify a stable connection before streaming. Enabling jumbo frames on the NIC helps GigE throughput.
3. Set exposure, gain and trigger, then grab a first image
In the IMPACT tools, start a live stream and adjust exposure and gain until the image is well-lit without saturation; set white balance on color models. Begin in free-run (continuous) mode to confirm imaging, then switch to hardware or software trigger as your application requires. Capture and save a reference image once the scene looks correct.
4. Build a vision tool or move to the SDK/API
Use the IMPACT point-and-click vision tools to assemble an inspection, or use the IMPACT SDK to access the camera and results programmatically and feed them into your HMI/PLC application. As these are GenICam/GenTL-compliant devices, you can alternatively drive them from any GenICam-compliant third-party vision library if your pipeline standardizes on one.
5. Route the stable feed to deep-learning inspection (optional)
Once you have a stable, repeatable image, the feed can be sent to a deep-learning inspection platform such as Rosepetal for defect detection or classification tasks that go beyond rule-based tooling. Keep lighting, optics and trigger timing fixed so the images reaching the model stay consistent.
