Is Datasensing CAM-M580-GE-8192 Line Scan Camera compatible with Rosepetal?

Yes. It is marked as Rosepetal-ready: it is suitable for AI-based visual inspection. We can validate your case with sample images.

Which lens and lighting do I need?

It depends on the field of view, the working distance and the surface. We help you select the right lens + lighting combination.

Datalogic / Datasensing Line scan cameras

Rosepetal compatible
Recommended by AIS Vision

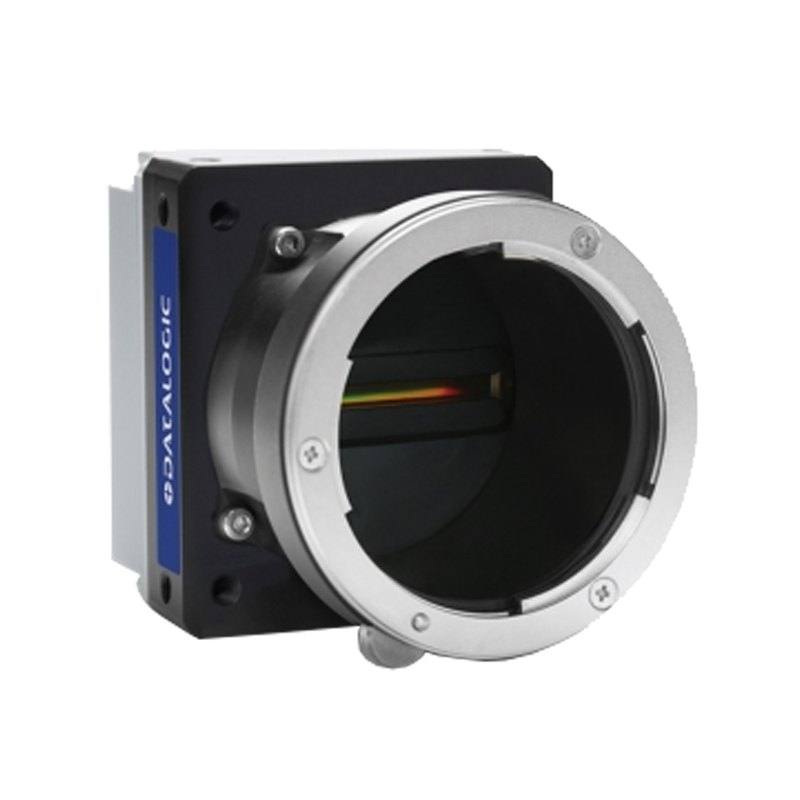

Datasensing CAM-M580-GE-8192 Line Scan Camera

CAM-M580-GE

The CAM-M580-GE-8192 is a GigE Vision line scan camera from Datasensing (Datalogic) featuring an 8192-pixel monochrome sensor with 3.5 µm square pixels and a maximum line rate of 12 kHz. It supports F/M42 lens mounts and connects via GigE (1000BASE-T) with 12–24 VDC power over a 6-pin cable (max 4.5 W). The compact housing (36 × 56 × 62 mm, ~240 g) carries an IP30 rating and is designed for use with the MX-E45 and MX-E90 Industrial Vision Processors. CE certified and RoHS compliant.

Brand: Datalogic / Datasensing
Camera type: line scan
Interface: GIGE
Resolution: 0.008192 MP
Mono / color: mono
Shutter: rolling
Line rate: 12000 kHz
Mount: f-mount
Pixel size: 3.5 µm
IP rating: ip30
Dimensions: 36 × 56 × 62 mm
Weight: 240 g

Validate my application with Rosepetal Request a technical quote Talk to AIS Vision

Specifications: General
Brand	Datalogic / Datasensing
Camera type	line scan

Specifications: Sensor
Resolution	0.008192 MP
Mono / color	mono
Shutter	rolling
Pixel size	3.5 µm

Specifications: Performance
Line rate	12000 kHz

Specifications: Interface
Interface	GIGE

Specifications: Optics
Mount	f-mount

Specifications: Environment
IP rating	ip30
Operating temperature	0…50 °C

Specifications: Mechanical
Dimensions	36 × 56 × 62 mm
Weight	240 g

We could not derive compatible lenses from the available data for this camera.

Matched automatically by: lens mount fits the camera mount · lens image circle covers the camera sensor — this camera: f-mount.

Need a compatible lens?

Tell us your sensor format, mount and field of view — we help you pick the right optics.

datasheetDatalogic / Datasensing CAM-M580-GE (M580) — manufacturer page →
datasheetDatalogic / Datasensing CAM-M580-GE (M580) — manufacturer page →
softwareIMPACT Software Suite →
downloadsDatalogic / Datasensing software & SDK downloads →

Follow these steps to bring a Datalogic / Datasensing camera online, grab a first image, and move toward an integrated inspection.

Software: IMPACT Software Suite

1. Install the IMPACT Software Suite and connect the camera
Install the IMPACT Software Suite on your PC, which provides both the configuration/viewer tools and the SDK. For a GigE Vision model (E100, M or U series), connect it to a dedicated NIC and, for USB3 models, use a certified USB3 cable and port. Power the camera and confirm it enumerates.
2. Bring the camera online and verify the link
For GigE Vision, put the camera and the host NIC on the same subnet (a static IP on the camera matching the NIC range is the most reliable starting point); for USB3, confirm the device is recognized. Open the IMPACT viewer/device tool, discover the camera, and verify a stable connection before streaming. Enabling jumbo frames on the NIC helps GigE throughput.
3. Set exposure, gain and trigger, then grab a first image
In the IMPACT tools, start a live stream and adjust exposure and gain until the image is well-lit without saturation; set white balance on color models. Begin in free-run (continuous) mode to confirm imaging, then switch to hardware or software trigger as your application requires. Capture and save a reference image once the scene looks correct.
4. Build a vision tool or move to the SDK/API
Use the IMPACT point-and-click vision tools to assemble an inspection, or use the IMPACT SDK to access the camera and results programmatically and feed them into your HMI/PLC application. As these are GenICam/GenTL-compliant devices, you can alternatively drive them from any GenICam-compliant third-party vision library if your pipeline standardizes on one.
5. Route the stable feed to deep-learning inspection (optional)
Once you have a stable, repeatable image, the feed can be sent to a deep-learning inspection platform such as Rosepetal for defect detection or classification tasks that go beyond rule-based tooling. Keep lighting, optics and trigger timing fixed so the images reaching the model stay consistent.
