Datasensing CAM-M565-GE-2048
CAM-M565-GE

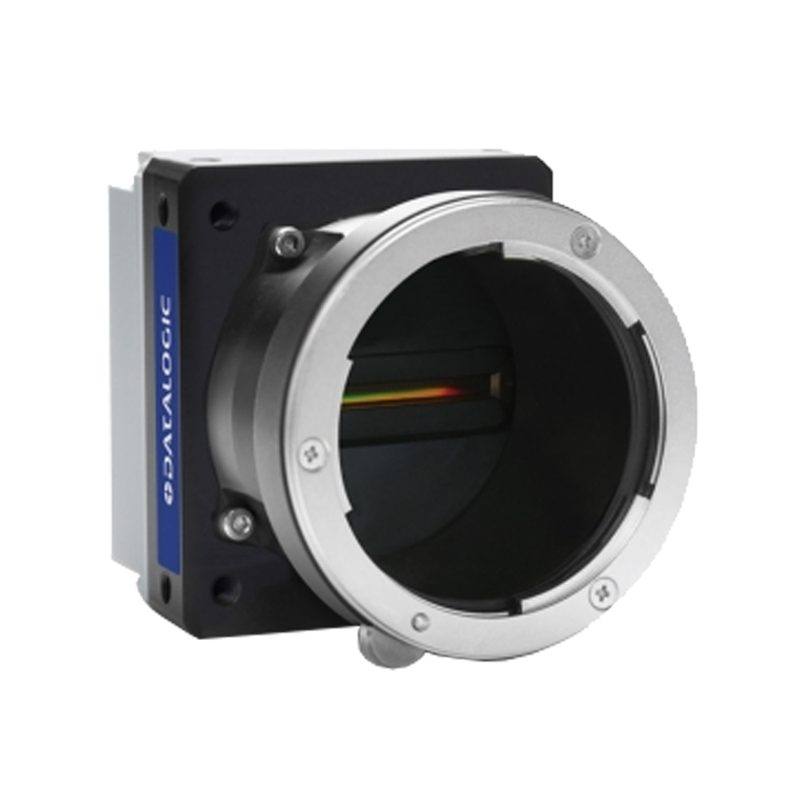

The Datasensing CAM-M565-GE is a GigE line scan camera featuring a 2048-pixel linear array with 7 µm square pixels and a maximum line rate of 51 kHz, delivering grayscale imagery for continuous web and conveyor inspection. It uses a compact 36 × 56 × 62 mm housing with C-, F-, or M42-mount lens compatibility, powered by 12–24 VDC. The camera is designed to operate with Datasensing MX-E45 or MX-E90 Industrial Vision Processors and carries IP30 ingress protection. Compliant with CE, it covers operating temperatures from 0 to 50 °C.
- Camera type
- Line Scan
- Interface
- GigE (1000BASE-T)
- Horizontal resolution
- 2048 px
- Mono / color
- Grayscale (Mono)
- Shutter
- Rolling (CMOS line scan)
- Line rate
- 51 kHz
- Pixel size
- 7 µm
- IP rating
- IP30
- Dimensions
- 36 × 56 × 62 mm
- Operating temperature
- 0–50 °C
- Mount
- C-mount
| Camera type | Line Scan |
|---|
| Horizontal resolution | 2048 px |
|---|---|
| Mono / color | Grayscale (Mono) |
| Shutter | Rolling (CMOS line scan) |
| Pixel size | 7 µm |
| Line rate | 51 kHz |
|---|
| Interface | GigE (1000BASE-T) |
|---|
| Mount | C-mount |
|---|
| IP rating | IP30 |
|---|---|
| Operating temperature | 0–50 °C |
| Dimensions | 36 × 56 × 62 mm |
|---|
