Is DCM Sistemes SAC0808A compatible with Rosepetal?

Yes. It is marked as Rosepetal-ready: it is suitable for AI-based visual inspection. We can validate your case with sample images.

Which lens and lighting do I need?

It depends on the field of view, the working distance and the surface. We help you select the right lens + lighting combination.

Name: DCM Sistemes SAC0808A
Brand: DCM Sistemes
SKU: dcm-sistemes-sac0808a
Availability: PreOrder

SAC0808A

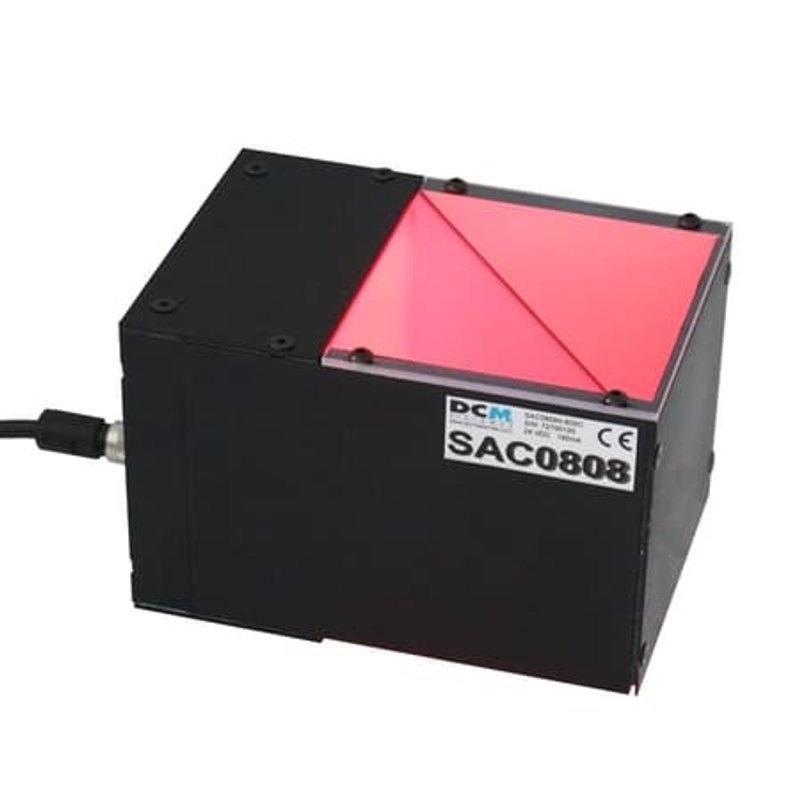

DCM Sistemes SAC0808A — coaxial light, 75x75mm active area, wavelengths 470nm 525nm 630nm 850nm RGB W00, <100mm working distance.

Specifications: General
Brand	DCM Sistemes
Lighting type	coaxial

Specifications: Optical
Working distance	<100mm
Available wavelengths	470nm 525nm 630nm 850nm RGB W00

Specifications: Electrical
Mode	Continuo Estrobo iBlueDrive
Driver technology	Continuo Estrobo iBlueDrive

Specifications: Mechanical
Dimensions	125x87x82mm

Specifications: Geometry
Illuminated area	75x75mm
