iRAYPLE AX5B17MP050E (5120x4096, 219fps, CXP-12) machine vision camera
iRAYPLEHigh-speed cameras
  • Rosepetal compatible
  • Recommended by AIS Vision

iRAYPLE AX5B17MP050E

AX5B17MP050E

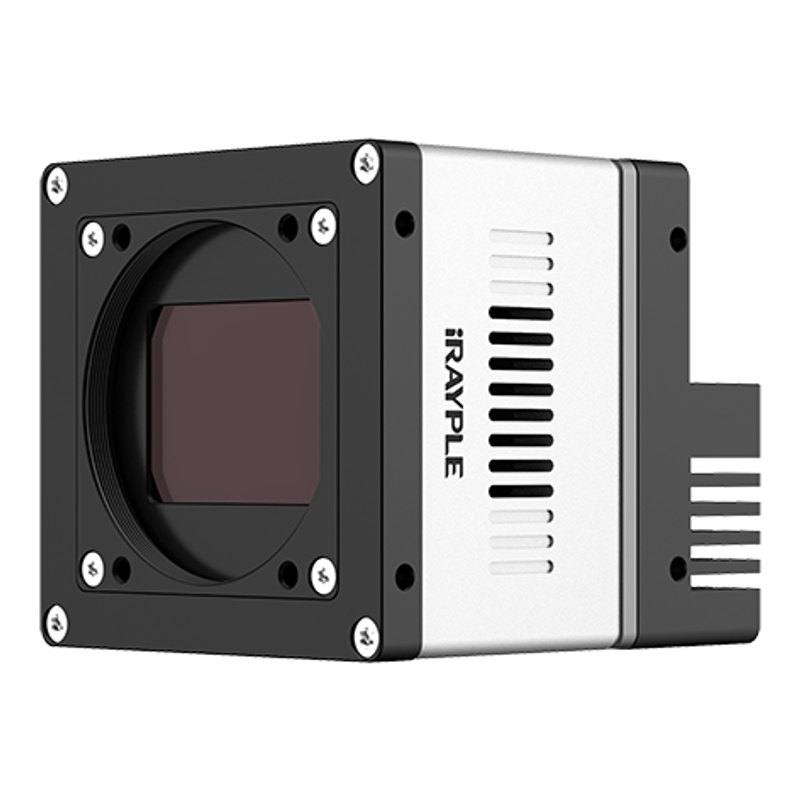

The AX5B17MP050E is a high-speed, large-format area-scan camera in iRAYPLE's AX series built around the 21-megapixel Gpixel GSPRINT4521 global-shutter CMOS sensor (23.04 x 18.43 mm, 4.5 µm pixels), delivering 5120 x 4096 resolution at up to 219 frames per second over a CXP-12 (CoaXPress-12) interface via an HD-BNC connector. The monochrome sensor offers a 44 dB SNR, 69 dB dynamic range, Mono8/10/12 pixel formats, and exposure times from 4 µs to 5 s. It uses an M58x0.75 lens mount, is powered by 24 VDC through a Hirose 12-pin connector with PoCXP support (34.56 W), and weighs 775 g in an 80x80x75 mm housing. Trigger modes include software, hardware, and free-run, with ROI, analog/digital gain, and defect-pixel correction supported.

Brand
iRAYPLE
Camera type
Area scan
Interface
CoaXPress CXP-12 (HD-BNC)
Resolution
21 MP
Horizontal resolution
5120 x 4096 px
Mono / color
Mono
Sensor manufacturer
Gpixel
Sensor model
Gpixel GSPRINT4521
Shutter
Global shutter
FPS
219 fps
Mount
M58 x 0.75
Sensor size
23.04 mm x 18.43 mm
Validate my application with RosepetalRequest a technical quoteTalk to AIS Vision

Technical overview

The iRAYPLE AX5B17MP050E is built around the Gpixel GSPRINT4521, a 21-megapixel global-shutter CMOS sensor that delivers a 5120 x 4096 frame at up to 219 fps. The combination of high resolution and high frame rate is the defining trait here: a global shutter freezes the entire frame at once, so parts moving on a fast conveyor or rotating drum are captured without the geometric skew or smear a rolling shutter would introduce. With 4.5 um pixels on a large 23.04 x 18.43 mm sensor, the camera resolves fine detail across a wide field at speed, which is the workload this product is designed for rather than slow, static inspection where a cheaper interface would suffice.

Moving that much data at 219 fps is why the camera uses a CoaXPress CXP-12 interface over an HD-BNC connector rather than GigE or USB3. CXP-12 provides the sustained bandwidth required for a 21 MP stream at full frame rate, carries the trigger and control channel down the same coax, and supports Power-over-CoaXPress (PoCXP) so a single cable can handle data, control, and power. It pairs with a CXP-12 frame grabber on the host PC and speaks GenICam, so it integrates with standard machine-vision SDKs. Power is 24 VDC through a Hirose 12-pin connector with a 34.56 W draw, and the camera ships in an 80 x 80 x 75 mm housing weighing 775 g with a -30 to 50 C operating range, which suits it to demanding production-floor enclosures.

The sensor is monochrome with Mono8/10/12 output, a 44 dB SNR and 69 dB dynamic range, making it well suited to detail- and contrast-driven tasks such as surface defect detection and edge-based dimensional measurement, where color is not needed and full pixel resolution matters. Exposure is adjustable from 4 us to 5 s, so very short integration times can freeze motion when paired with bright strobed illumination, while long exposures remain available for static setups. The M58 x 0.75 large-format mount is required to cover the big sensor without vignetting, and trigger flexibility (software, hardware, and free-run) plus ROI, analog/digital gain, and defect-pixel correction let an installer trade resolution for even higher effective frame rates on a windowed region.

Best for

  • High-speed surface inspection of fast-moving web, sheet, or panel material where a global shutter must freeze motion at 219 fps across a wide 5120 x 4096 field
  • AI-based and rule-based defect detection on electronics, semiconductor, and automotive parts that need both high resolution and high throughput in one pass
  • Precision dimensional and edge measurement over a large field of view, using the full 21 MP frame and 4.5 um pixels for fine spatial detail
  • Inline inspection on indexing or continuous lines where short exposures (down to 4 us) combine with strobed lighting to stop motion without blur
  • Large-format CoaXPress vision stations already standardized on CXP-12 frame grabbers and GenICam tooling

Selection notes

  • Plan the host side around CXP-12: this camera needs a matching CoaXPress CXP-12 frame grabber and HD-BNC coax cabling; if your line is built on GigE or USB3 it is not a drop-in choice
  • Budget for the M58 x 0.75 mount and a large-format lens that covers the 23.04 x 18.43 mm sensor and resolves 4.5 um pixels, otherwise corner sharpness and effective resolution will fall short
  • Sustaining 219 fps at full 5120 x 4096 means very short exposures, so pair the camera with strong continuous or strobed illumination and trigger sync; light starvation, not the sensor, will usually be the limit
  • Confirm power and cabling: 24 VDC via the Hirose 12-pin at 34.56 W, with PoCXP as an option to consolidate power, data, and control over the coax run
  • The sensor is monochrome only; for any task requiring color discrimination this model will not work, but for contrast-, edge-, and texture-based inspection mono delivers full resolution and better light sensitivity
  • If full-frame rate is not enough, use ROI windowing to raise frame rate on a region of interest, and verify the 80 x 80 x 75 mm, 775 g body fits your mechanical envelope and thermal conditions (-30 to 50 C)

Specifications: General
BrandiRAYPLE
Camera typeArea scan

Specifications: Sensor
Resolution21 MP
Horizontal resolution5120 x 4096 px
Mono / colorMono
Sensor manufacturerGpixel
Sensor modelGpixel GSPRINT4521
ShutterGlobal shutter
Sensor size23.04 mm x 18.43 mm
Pixel size4.5 x 4.5 µm

Specifications: Performance
FPS219 fps

Specifications: Interface
InterfaceCoaXPress CXP-12 (HD-BNC)
ProtocolsCoaXPress / GenICam

Specifications: Optics
MountM58 x 0.75

Specifications: Electrical
Power24 VDC (Hirose 12-pin), PoCXP compatible
Power consumption34.56 W

Specifications: Environment
Operating temperature-30 to 50 °C

Specifications: Mechanical
Dimensions80 x 80 x 75 mm
Weight775 g

Frequently asked questions

Related technical guides

Guide

High-speed imaging for inspection

How to build a high-speed machine-vision system: balance frame rate against resolution, freeze motion with short exposure and strobe lighting, and size the interface and frame grabber for sustained throughput.

Guide

GigE Vision vs USB3 Vision vs CoaXPress

A practical decision guide to the three dominant machine-vision interfaces: bandwidth, cable length, multi-camera support, PoE, latency, frame grabber needs and cost.

Guide

Global shutter vs rolling shutter

How global and rolling shutters differ, why rolling shutter distorts moving objects, and when each is the right choice for industrial inspection.
