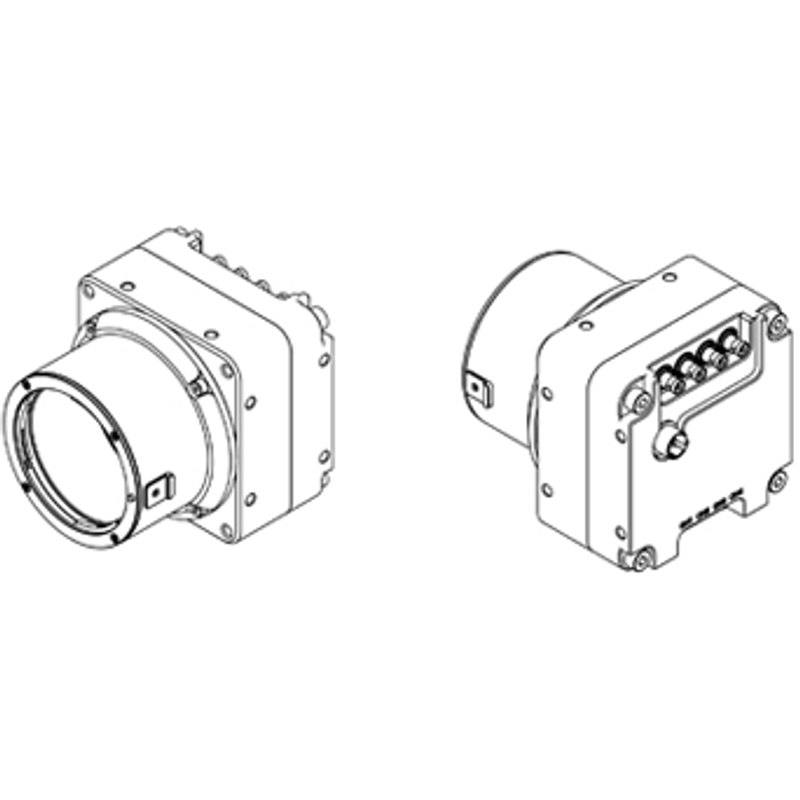

Omron / Sentech STC-LBE671FCXP124 / STC-LCE671FCXP124 machine vision camera
Omron / SentechHigh-resolution cameras
  • Rosepetal compatible
  • Recommended by AIS Vision

Omron / Sentech Sentech STC-LBE671FCXP124 / STC-LCE671FCXP124 (67MP CoaXPress)

STC-LBE671FCXP124

The STC-LBE671FCXP124 (mono) and STC-LCE671FCXP124 (color) are top-end high-resolution area-scan cameras built around the APS-C-format Teledyne e2v EV2S67MB global-shutter CMOS sensor, delivering 8192 x 8192 pixels (67MP) at 2.5 µm pixel pitch and up to 65.0 fps. They use a CoaXPress CXP-12 4-lane interface over four 75 ohm Micro-BNC connectors, supporting PoCXP or external 18.5-26 Vdc power at under 13 W. Output formats are Mono8/Mono10 for the mono model and BayerRG8/BayerRG10 for the color model, with exposure from 8 µs to 16.777 s and an M42-mount housing of 68 x 68 x 76.5 mm weighing about 470 g.

Brand
Omron / Sentech
Camera type
Area scan
Interface
CoaXPress CXP-12 (4 lane)
Resolution
67 MP
Horizontal resolution
8192 (H) x 8192 (V) px
Mono / color
Mono (STC-LBE671FCXP124) / Color (STC-LCE671FCXP124)
Sensor manufacturer
Teledyne e2v
Sensor model
Teledyne e2v EV2S67MB (Emerald 67M)
Shutter
Global shutter
FPS
65.0 fps
Mount
M42 mount (M42 x P1.0, FB 10.0 mm)
Sensor size
APS-C (approx. 20.5 x 20.5 mm)
Validate my application with RosepetalRequest a technical quoteTalk to AIS Vision

Technical overview

The Omron Sentech STC-LBE671FCXP124 (monochrome) and STC-LCE671FCXP124 (color) are top-end area-scan cameras built around the Teledyne e2v EV2S67MB "Emerald 67M" global-shutter CMOS sensor. That sensor delivers a full 8192 x 8192 (67MP) frame on an APS-C-format imager of approximately 20.5 x 20.5 mm with a fine 2.5 µm pixel pitch. For an installer, the combination of square-format resolution and global shutter is the headline: every pixel is exposed simultaneously, so fast-moving webs, indexing stages, and parts on a conveyor are captured without the skew or smear a rolling shutter would introduce. The 2.5 µm pixels and 67MP frame mean you can resolve very small features across a large field of view in a single shot, which is exactly what surface and defect inspection at high magnification demands.

The data path is CoaXPress CXP-12 over four lanes, terminated in four 75-ohm Micro-BNC connectors. Across four CXP-12 lanes the camera sustains 65.0 fps at full resolution, which is a substantial throughput for a 67MP sensor and is what makes high-speed, high-resolution inspection on a moving line realistic rather than throughput-bound. CoaXPress also carries power and trigger/control back over the same coax, so the camera accepts PoCXP from the frame grabber or external +18.5 to +26 Vdc, drawing under 13 W. Cable runs on coax reach much farther than USB3 and keep latency deterministic, but the trade-off is that you must budget for a CXP-12 4-connection frame grabber and a low-jitter strobe/trigger setup on the host side. The camera communicates over CoaXPress using GenICam, so it drops into standard machine-vision software stacks.

Optically, the camera uses an M42 mount (M42 x P1.0, 10.0 mm flange back) rather than the smaller C-mount, because the APS-C image circle is far larger than a C-mount lens can cover; you must pair it with an M42 or large-format lens that covers the full ~20.5 x 20.5 mm sensor and resolves the 2.5 µm pixel pitch, otherwise the lens, not the sensor, sets your resolution. Output formats are Mono8/Mono10 on the LBE671 and BayerRG8/BayerRG10 on the color LCE671, with exposure adjustable from 8 µs up to 16.777 s, giving room for both fast strobed capture and long integration in dim setups. The body measures 68 x 68 x 76.5 mm and weighs about 470 g, and it is rated for 0 to +46 °C operation, so mounting rigidity and thermal headroom on the line are worth confirming during design-in.

Best for

  • High-resolution surface and defect inspection of large flat parts where a single 67MP frame must resolve very small flaws across the whole field of view
  • Semiconductor and electronics inspection (wafers, panels, PCBs) that needs fine 2.5 µm-pitch detail without stitching multiple lower-resolution images
  • Dimensional measurement on moving stages, where the global shutter freezes motion and avoids the geometric distortion of a rolling shutter
  • High-speed line inspection in printing or battery-electrode production, exploiting 65.0 fps at full 8192 x 8192 resolution over CoaXPress CXP-12
  • Industrial OCR/OCV and fine-print verification where small characters must remain sharp across a wide square field

Selection notes

  • Plan the host side for CoaXPress: you need a CXP-12 frame grabber with four Micro-BNC connections to use all four lanes and reach 65.0 fps; fewer connected lanes will reduce achievable frame rate.
  • Choose monochrome (STC-LBE671FCXP124) for maximum sensitivity and resolution on defect/measurement tasks, or color (STC-LCE671FCXP124, BayerRG output) only when color is genuinely part of the inspection criterion.
  • Specify the lens for the format: this is an M42 (M42 x P1.0, FB 10.0 mm) APS-C camera, so use a large-format lens that covers the ~20.5 x 20.5 mm sensor and resolves the 2.5 µm pixel pitch, or the optics will cap real resolution.
  • Power and cabling: the camera runs on PoCXP from the grabber or external +18.5 to +26 Vdc at under 13 W; confirm the grabber supplies enough PoCXP budget across four ports or provide external power.
  • Account for the environment and mechanics: 0 to +46 °C operating range, 68 x 68 x 76.5 mm body and ~470 g weight mean you should provide a rigid mount and verify ambient temperature, especially in enclosed inspection cells.

Specifications: General
BrandOmron / Sentech
Camera typeArea scan

Specifications: Sensor
Resolution67 MP
Horizontal resolution8192 (H) x 8192 (V) px
Mono / colorMono (STC-LBE671FCXP124) / Color (STC-LCE671FCXP124)
Sensor manufacturerTeledyne e2v
Sensor modelTeledyne e2v EV2S67MB (Emerald 67M)
ShutterGlobal shutter
Sensor sizeAPS-C (approx. 20.5 x 20.5 mm)
Pixel size2.5 (H) x 2.5 (V) µm

Specifications: Performance
FPS65.0 fps

Specifications: Interface
InterfaceCoaXPress CXP-12 (4 lane)
ProtocolsCoaXPress / GenICam

Specifications: Optics
MountM42 mount (M42 x P1.0, FB 10.0 mm)

Specifications: Electrical
Powerpocxp (PoCXP or external +18.5 to +26 Vdc)
Power consumption13 W
Supply voltage+18.5 to +26 Vdc

Specifications: Environment
Operating temperature0 to +46 °C

Specifications: Mechanical
Dimensions68 (W) x 68 (H) x 76.5 (D) mm
Weight470 g
