iRAYPLE A7801MG400E (4096x2160, XGS8000, GigE) machine vision camera
iRAYPLEArea scan cameras
  • Rosepetal compatible
  • Recommended by AIS Vision

iRAYPLE A7801MG400E

A7801MG400E

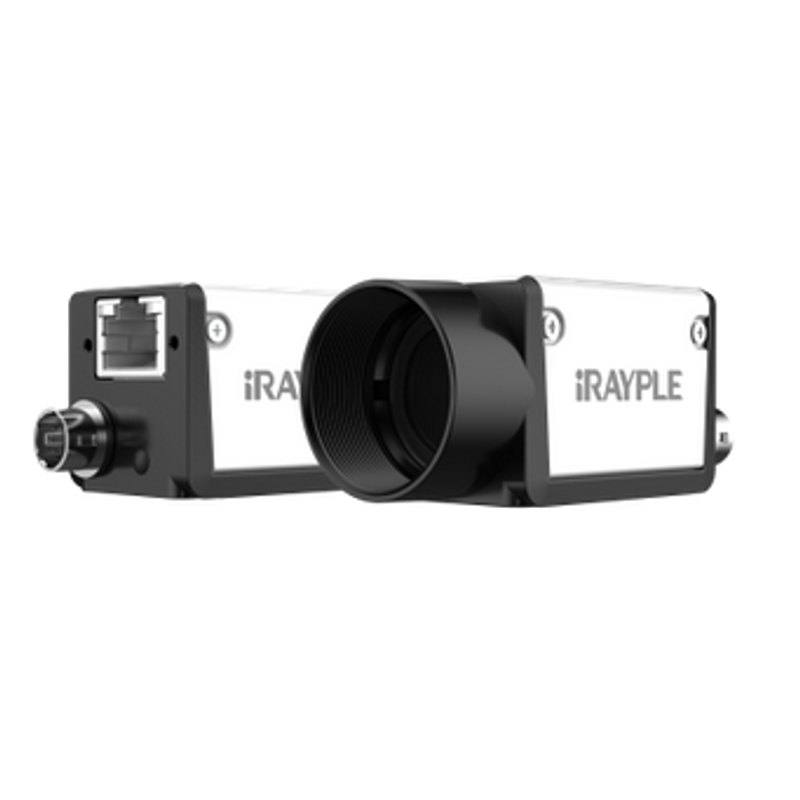

The iRAYPLE A7801MG400E is an A-series industrial area-scan camera using a 1/1.1" onsemi XGS8000 global-shutter CMOS sensor with 4096x2160 (12MP) resolution, 3.2um pixels, 12-bit output, and a 13 fps frame rate. It connects over a 1 Gbps Gigabit Ethernet interface (PoE-capable, up to 100m), conforms to GigE Vision V2.0 and the GenICam standard, and includes a 128MB on-board cache with a 64MB image buffer. Power is supplied via PoE or DC 9-24V through the Hirose connector (about 3.2W at 12V), and the camera uses a C-mount with one 6-pin Hirose GPIO providing opto-isolated input/output. It supports software/hardware/free-run triggering, 69us-1s exposure, gain 1-32, and ISP functions including sharpness, denoising, gamma/LUT, black-level correction and binning/ROI/mirror.

Brand
iRAYPLE
Camera type
Area scan
Interface
GigE (1 Gbps, PoE, up to 100m)
Resolution
8.8
Horizontal resolution
4096 x 2160 px
Mono / color
Monochrome
Sensor manufacturer
onsemi (XGS8000)
Sensor model
onsemi XGS8000
Shutter
Global shutter
FPS
13 fps
Mount
C-mount
Sensor size
1/1.1" CMOS
Validate my application with RosepetalRequest a technical quoteTalk to AIS Vision

Technical overview

The iRAYPLE A7801MG400E is an 8.8-megapixel monochrome area-scan camera built on the onsemi XGS8000 global-shutter CMOS sensor, delivering a 4096 x 2160 image on a 1/1.1-inch optical format with 3.2 um square pixels. The global shutter is the headline feature: every pixel is exposed and read simultaneously, so fast-moving parts on a conveyor or indexing fixture are captured without the skew and smear that a rolling shutter would introduce. That, combined with monochrome output and 12-bit output, makes this a sensor geared toward precise, deterministic inspection rather than color rendering. With no color filter in the way, every photosite contributes full luminance information, which maximizes spatial resolution and low-light sensitivity for measurement, surface and code-reading tasks.

The camera runs at 13 fps at full frame, and the high pixel count is the trade-off you accept for that throughput: 4096 x 2160 gives you the spatial detail to resolve small defects or fine print across a wide field of view, while 13 fps sets the realistic cycle budget per inspection. For faster effective rates you would crop with the on-board ROI, and binning is available when you want to trade resolution for sensitivity or speed. The 3.2 um pixel is fine-pitched, so getting full value out of 8.8 MP demands a quality lens with the resolving power to match; the C-mount accepts standard industrial optics, but for a 1/1.1-inch sensor at this resolution you should specify a high-resolution lens rated for the format and pixel size to avoid being optics-limited.

Connectivity is standard Gigabit Ethernet at 1 Gbps, PoE-capable, with cable runs up to 100 m, and the camera conforms to GigE Vision V2.0 and GenICam so it drops into any compliant acquisition stack. A 128 MB on-board cache with a 64 MB image buffer helps absorb bursts and smooth delivery over the single-gigabit link, which matters because an 8.8 MP, 12-bit frame is large relative to GigE bandwidth. Power comes either from PoE or DC 9-24 V through the Hirose connector at roughly 3.2 W at 12 V, and a single 6-pin Hirose GPIO provides opto-isolated input and output for trigger-in and strobe-out. Triggering supports software, hardware and free-run modes, exposure spans 69 us to 1 s, and gain runs 1-32, with ISP functions including sharpness, denoising, gamma/LUT, black-level correction, binning/ROI and mirror. The compact 29 x 29 x 42 mm, 88 g body and wide -30 to +50 degC operating range suit it to tight, demanding enclosures.

Best for

  • High-resolution surface and defect inspection on electronics, semiconductor and printed materials, where 8.8 MP across 4096 x 2160 resolves small flaws over a wide field
  • Dimensional measurement and gauging that benefits from a global shutter freezing moving or indexed parts without geometric distortion
  • Industrial OCR/OCV and 2D code reading where full monochrome luminance and fine 3.2 um pixels maximize character and code legibility
  • Packaging and print inspection lines running at moderate cycle rates within the 13 fps full-frame budget, using ROI cropping for higher effective rates
  • PoE-powered GigE installations needing a single cable for power and data over runs up to 100 m in a compact, wide-temperature housing

Selection notes

  • Pair with a high-resolution C-mount lens rated for the 1/1.1-inch format and 3.2 um pixel pitch; a soft or undersized lens will waste the 8.8 MP and become the limiting factor on small-defect detection
  • Budget your cycle time around 13 fps at full frame; if you need faster throughput, plan to crop with the on-board ROI or use binning to trade resolution for speed and sensitivity
  • Account for GigE bandwidth: an 8.8 MP, 12-bit frame is heavy on a 1 Gbps link, so rely on the 128 MB cache and 64 MB buffer for burst tolerance and use proper jumbo-frame NIC tuning
  • Plan lighting and trigger wiring around the single 6-pin Hirose GPIO (opto-isolated input and output) for hardware trigger-in and strobe-out, and confirm your PLC or controller matches the opto-isolated interface
  • Decide power topology early: PoE simplifies cabling to one Ethernet run, but if you use DC 9-24 V through the Hirose connector, budget roughly 3.2 W at 12 V and provision the supply accordingly

Specifications: General
BrandiRAYPLE
Camera typeArea scan

Specifications: Sensor
Resolution8.8
Horizontal resolution4096 x 2160 px
Mono / colorMonochrome
Sensor manufactureronsemi (XGS8000)
Sensor modelonsemi XGS8000
ShutterGlobal shutter
Sensor size1/1.1" CMOS
Pixel size3.2 um x 3.2 um

Specifications: Performance
FPS13 fps

Specifications: Interface
InterfaceGigE (1 Gbps, PoE, up to 100m)
ProtocolsGigE Vision V2.0, GenICam

Specifications: Optics
MountC-mount

Specifications: Electrical
PowerPoE / DC 9-24V via Hirose (~3.2W @ 12V)
Power consumption3.2 W

Specifications: Environment
Operating temperature-30 to +50 degC

Specifications: Mechanical
Dimensions29 x 29 x 42 mm (excl. lens mount & rear connector)
Weight88 g
