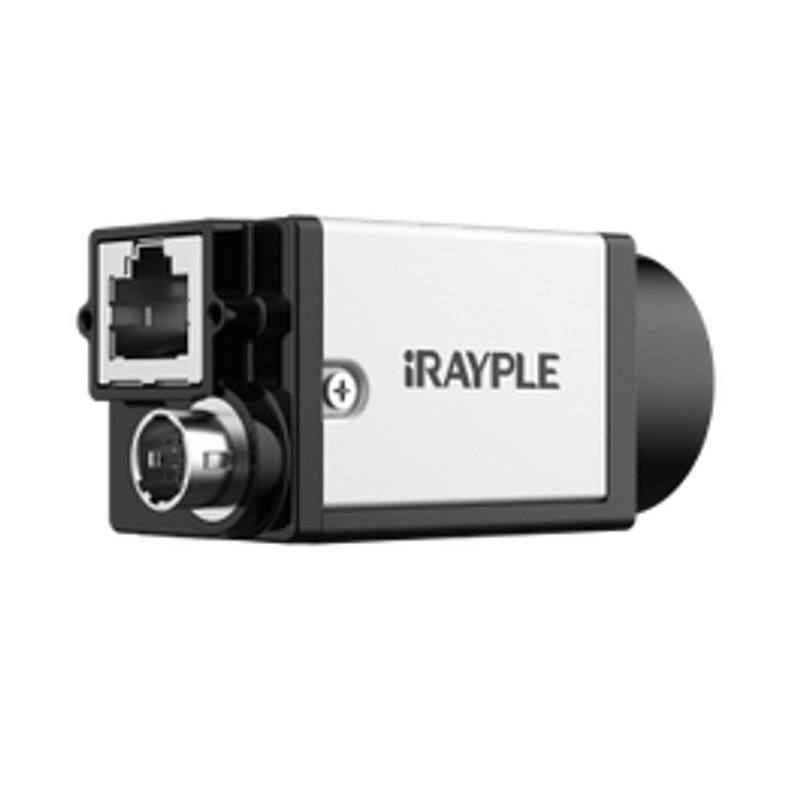

iRAYPLE AE7501MG010E / AE7501CG010E (5MP XGS5000 GigE)

AE7501MG010E

The iRAYPLE AE7501MG010E (mono) and AE7501CG010E (color) are 5 megapixel industrial area scan cameras built around the 2/3-inch Onsemi XGS5000 global-shutter CMOS sensor with 3.2 um pixels, delivering up to about 22 fps at full 2592x2048 resolution. They use a single Gigabit Ethernet (1000 Mbit/s) interface conforming to GigE Vision V2.0 and the GenICam standard, with up to 100 m transmission distance and 256 MB onboard cache for image buffering and resending. Power is supplied via PoE or a 6-pin Hirose connector (DC 9-24 V), and the camera ships with a C-mount (CS-mount optional). It supports software, hardware and free-run trigger modes plus onboard ISP functions (sharpness, denoising, gamma, LUT, black-level correction, contrast).

Brand
iRAYPLE
Camera type
Area scan
Interface
GigE (1000 Mbit/s, PoE)
Resolution
5 MP (5.3 MP / 5.31M effective)
Horizontal resolution
2592 x 2048 px
Mono / color
Mono (AE7501MG010E) / Color (AE7501CG010E)
Sensor manufacturer
Onsemi (ON Semiconductor)
Sensor model
Onsemi XGS5000 CMOS
Shutter
Global shutter
FPS
21 fps @ full resolution (manufacturer figure); Alrad lists 22 fps
Mount
C-mount (CS-mount optional)
Sensor size
2/3 inch
Validate my application with RosepetalRequest a technical quoteTalk to AIS Vision

Technical overview

The iRAYPLE AE7501MG010E (mono) and AE7501CG010E (color) are 5MP area scan cameras built on the 2/3-inch Onsemi XGS5000 global-shutter CMOS sensor, delivering a 2592 x 2048 image at up to about 22 fps at full resolution. The combination that matters here is global shutter plus 3.2 um pixels: the global shutter exposes every pixel simultaneously, so parts moving on a conveyor or carried on a robot arm are captured without the skew and smear a rolling shutter would introduce. That makes this camera a natural fit for any application where the target is in motion at the moment of capture, and it is why the mono variant in particular is well suited to high-contrast measurement and code-reading tasks where edge fidelity drives accuracy.

Connectivity is a single Gigabit Ethernet port running GigE Vision V2.0 over GenICam, rated for cable runs up to 100 m and supplied with 256 MB of onboard cache for image buffering and resending. The long reach and standardized protocol are the practical strengths of this interface: you can place the camera up to 100 m from the controller cabinet using ordinary Ethernet cabling, and the onboard cache covers transient network congestion by holding frames until the link can resend them. At roughly 21-22 fps at full resolution the data rate sits comfortably inside the 1000 Mbit/s budget, so you get the full frame stream without the bandwidth pressure that a higher-resolution or faster sensor would put on a single GigE link. Power is flexible too, via PoE on the same cable or DC 9-24 V through the 6-pin Hirose connector, with a low 3.4 W draw.

Optically the camera ships with a C-mount (CS-mount optional), and the 2/3-inch format with 3.2 um pixels should guide lens selection toward optics that resolve at that pixel pitch and cover the 2/3-inch image circle. Triggering is comprehensive: software, hardware and free-run modes let you synchronize capture to an encoder, a photoelectric part-present sensor or a PLC strobe pulse, and pairing the hardware trigger with strobed lighting is the standard way to freeze fast motion and stabilize exposure. Onboard ISP functions, including sharpness, denoising, gamma, LUT, black-level correction and contrast, let you offload basic image conditioning to the camera. The -30 to +50 degC operating range and compact 29 x 29 x 42 mm body make it practical to mount close to the process in tight or thermally demanding enclosures.

Best for

  • Inline defect and surface inspection of parts moving on a conveyor, where the global shutter freezes motion without distortion
  • Dimensional measurement and metrology on the mono variant, where 2592 x 2048 resolution and crisp global-shutter edges support sub-pixel gauging
  • Reading and verifying printed codes and OCR/OCV text on packaging and electronics at line speed using a hardware-triggered, strobe-synchronized capture
  • Distributed inspection cells where the camera must sit up to 100 m from the controller cabinet over standard GigE cabling
  • Electronics, automotive, semiconductor and logistics stations needing PoE single-cable installation in a compact 29 x 29 x 42 mm footprint

Selection notes

  • Choose the mono AE7501MG010E for measurement, code reading and high-contrast defect detection; choose the color AE7501CG010E only when color is part of the inspection criterion, since the mono sensor delivers full per-pixel sharpness without a Bayer pattern
  • Size the lens for the 2/3-inch sensor format and 3.2 um pixel pitch, and use a C-mount lens (CS-mount is an option) that resolves at that pitch to actually realize the 5MP detail
  • Confirm that about 21-22 fps at full resolution meets your throughput; if you need higher frame rates, plan to use a region of interest, since a single GigE link and this sensor cap the full-frame rate
  • Plan the trigger and lighting chain together: use the hardware trigger with strobed illumination to freeze motion, and reserve free-run mode for static or continuously imaged scenes
  • Budget the link and power as a system; the 1000 Mbit/s GigE interface, 256 MB cache for resend, PoE or 9-24 V Hirose power and 3.4 W draw determine cabling, switch PoE budget and cabinet wiring over runs up to 100 m

Specifications: General
BrandiRAYPLE
Camera typeArea scan

Specifications: Sensor
Resolution5 MP (5.3 MP / 5.31M effective)
Horizontal resolution2592 x 2048 px
Mono / colorMono (AE7501MG010E) / Color (AE7501CG010E)
Sensor manufacturerOnsemi (ON Semiconductor)
Sensor modelOnsemi XGS5000 CMOS
ShutterGlobal shutter
Sensor size2/3 inch
Pixel size3.2 x 3.2 um

Specifications: Performance
FPS21 fps @ full resolution (manufacturer figure); Alrad lists 22 fps

Specifications: Interface
InterfaceGigE (1000 Mbit/s, PoE)
ProtocolsGigE Vision V2.0, GenICam

Specifications: Optics
MountC-mount (CS-mount optional)

Specifications: Electrical
PowerPoE or DC 9-24 V via 6-pin Hirose
Power consumption3.4 W

Specifications: Environment
Operating temperature-30 to +50 degC

Specifications: Mechanical
Dimensions29 x 29 x 42 mm
